【Features】This is a waterproof, Snap lock type panel-mount receptacle . It’s expertly crafted from durable Zine alloy with nickel plating, designed specifically for applications demanding rapid connections and robust construction. 【Applications】Ideal for cable extension and relaying between devices.They are widely used in aviation, aerospace, ships and other military fields.

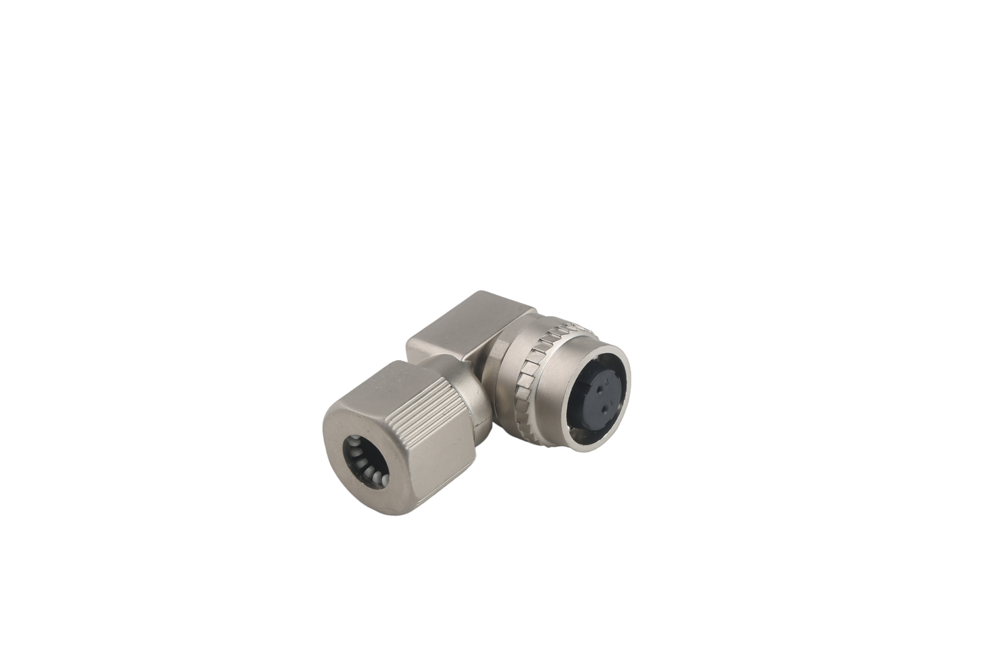

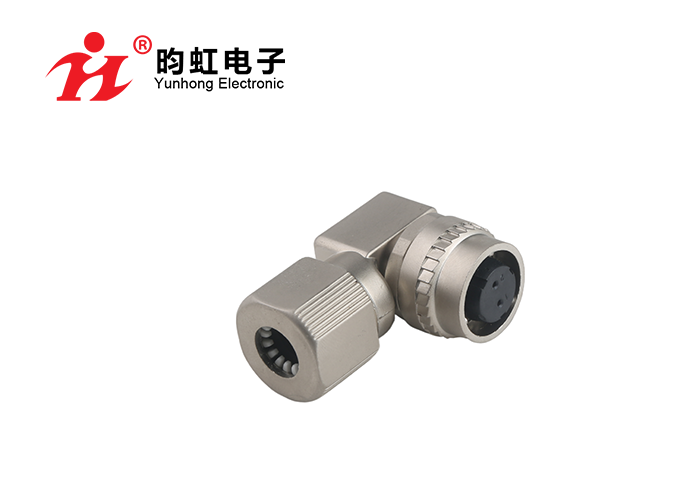

Curved plug

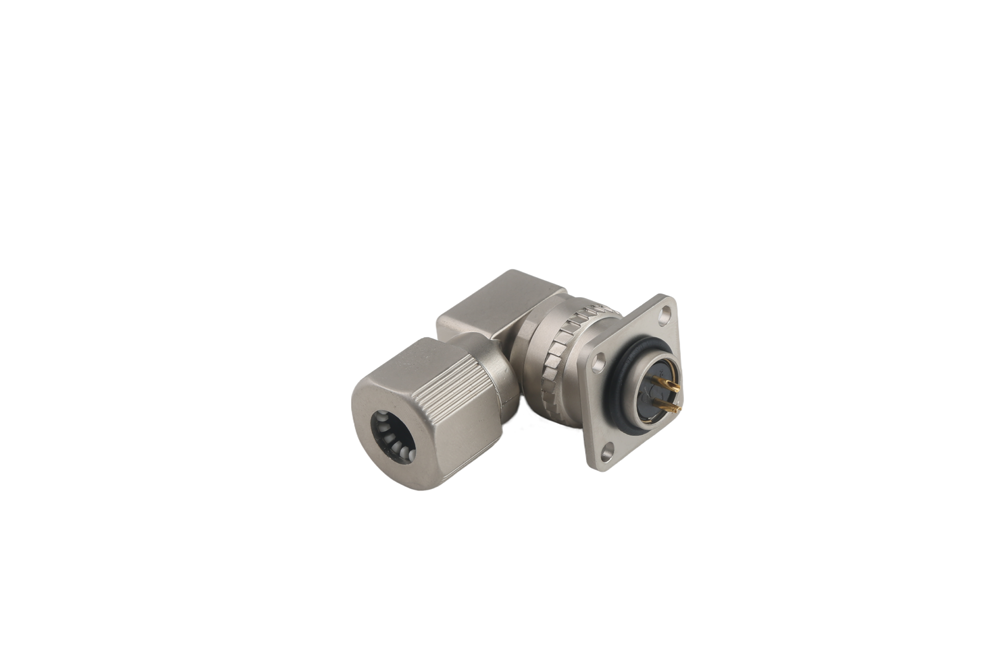

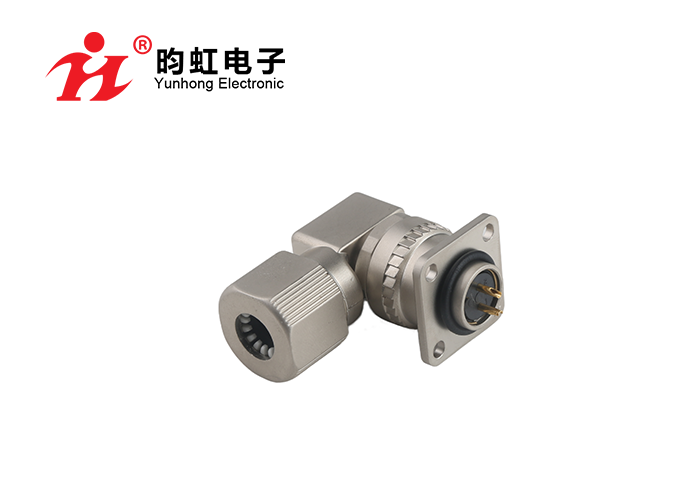

Curved plug with square flange receptacle

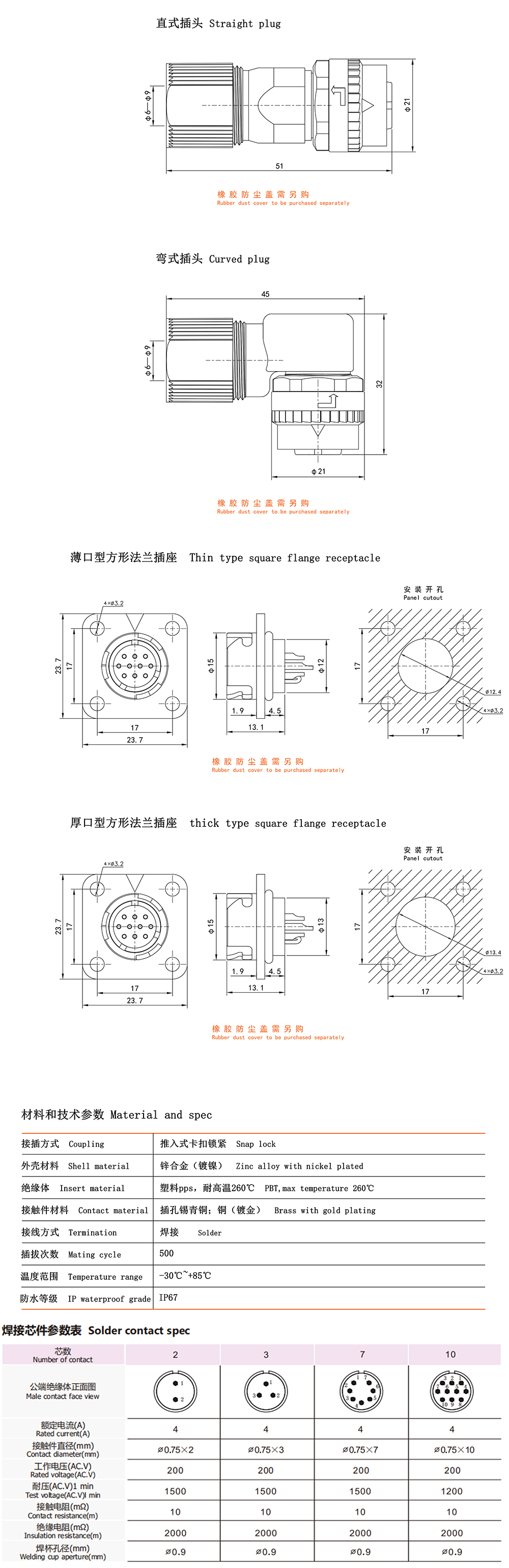

Type | Snap lock |
Shell material | Zinc alloy with nickel plated |
Insert material | PBT , max temperature 260℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 12.4mm |
Number of crimp contact | 2/3/7/10pin |
Allowable Current (A） | 4 |
Contact diameter(mm) | Φ0.75 |
Allowable voltage(AC.V) | 200 |
Test voltage(AC.V)/min | 1500 |
Contact resistance(m) | 10 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ0.9 |
