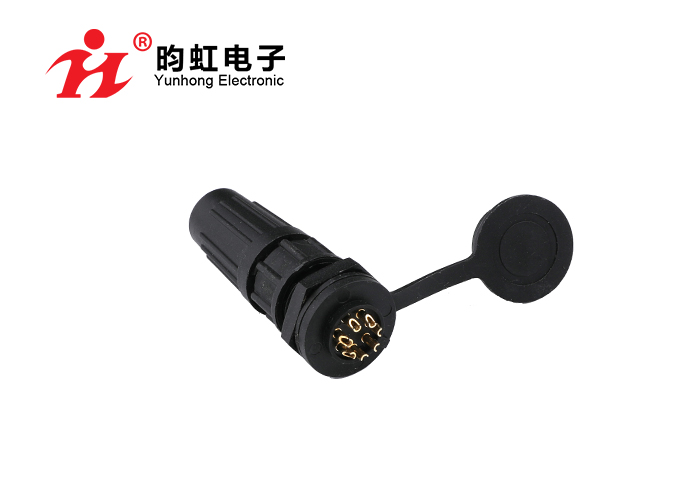

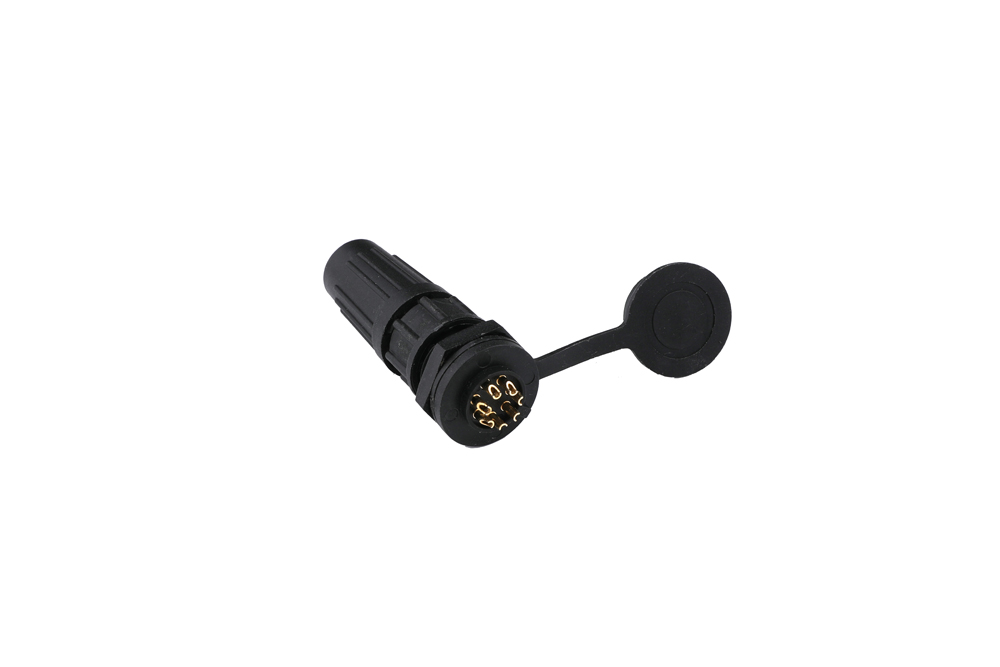

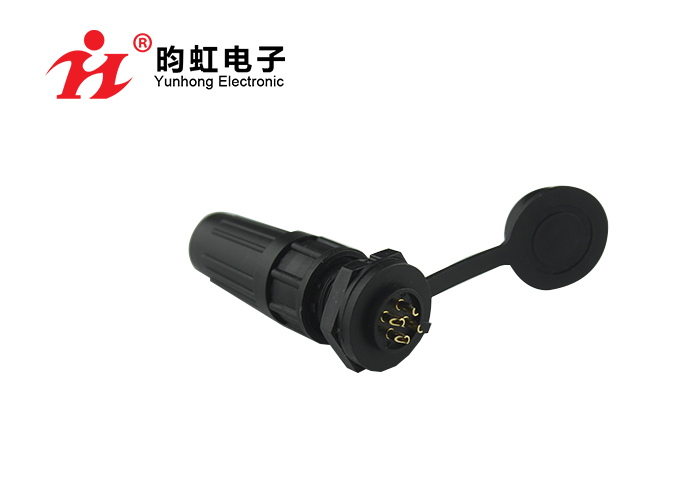

【Features】This is a waterproof, Snap lock type panel-mount receptacle . Nylon material shell High density insulation flame retardant .Brass with gold plating accessories. Gold plated pins have strong conductivity. 【Applications】Ideal for cable extension and relaying between devices.They are widely used in aviation, aerospace, ships and other military fields.

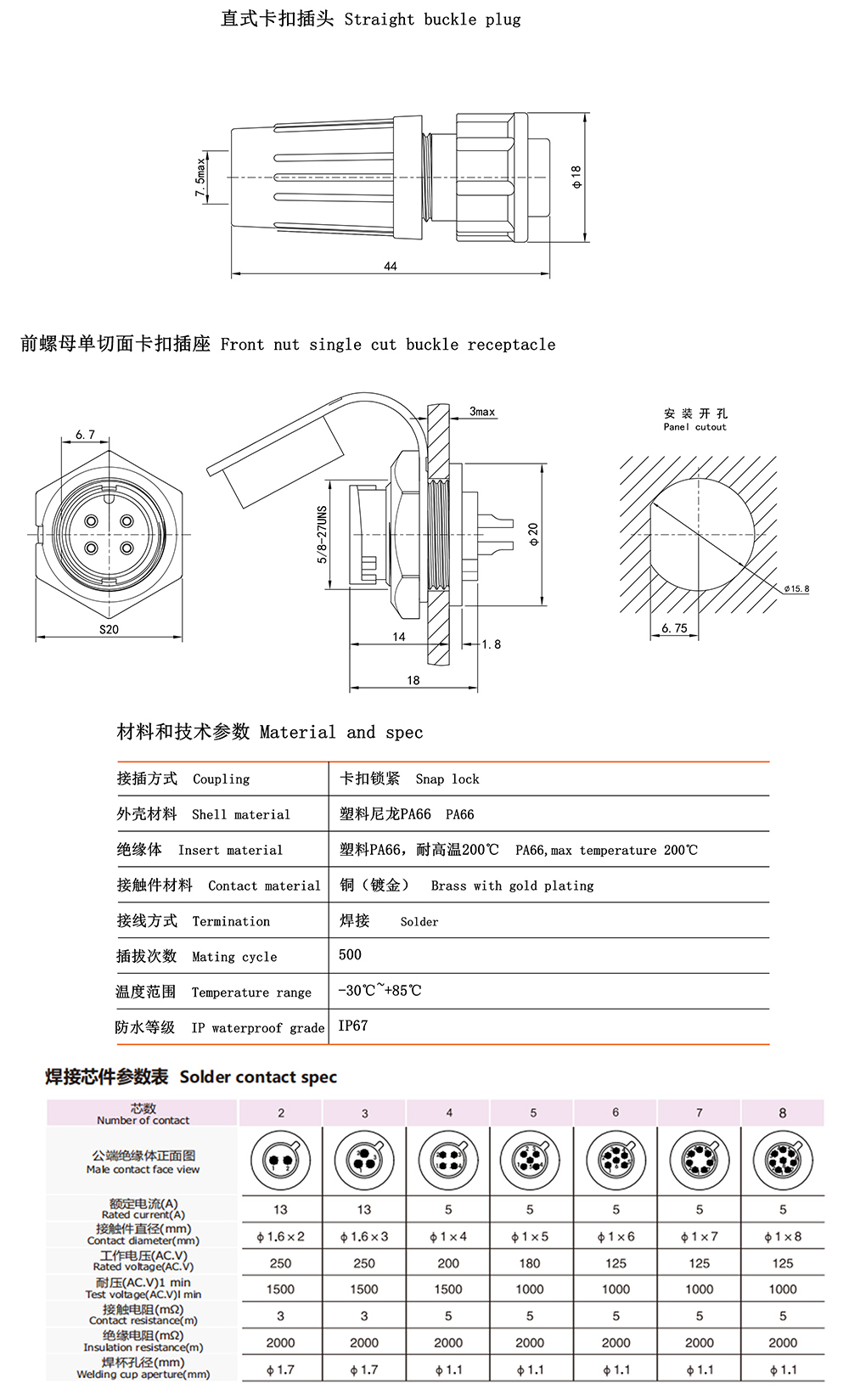

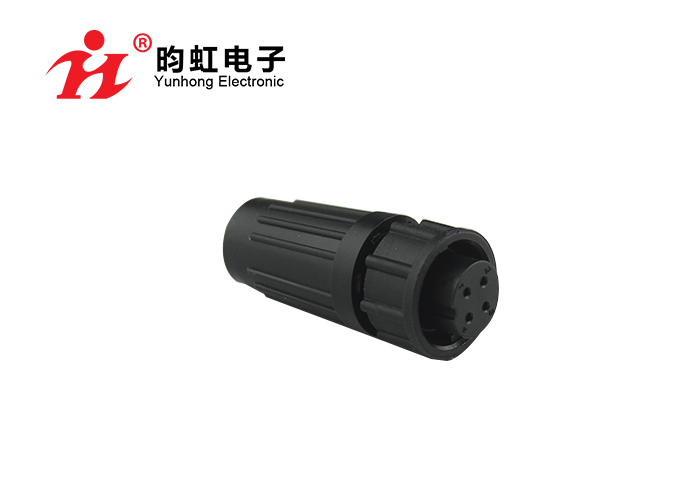

Straight buckle plug

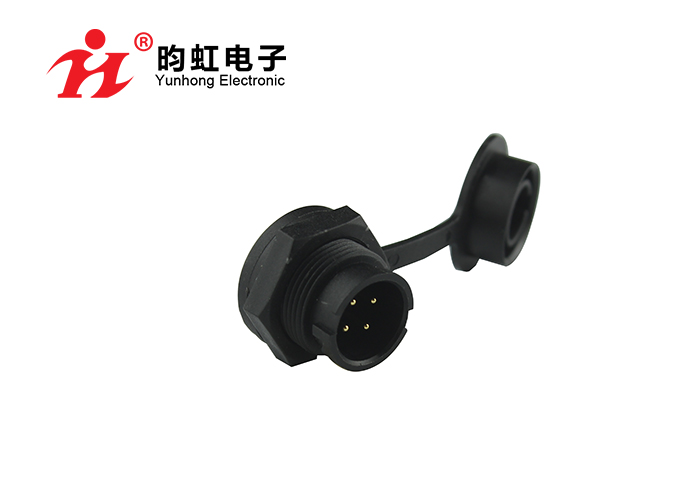

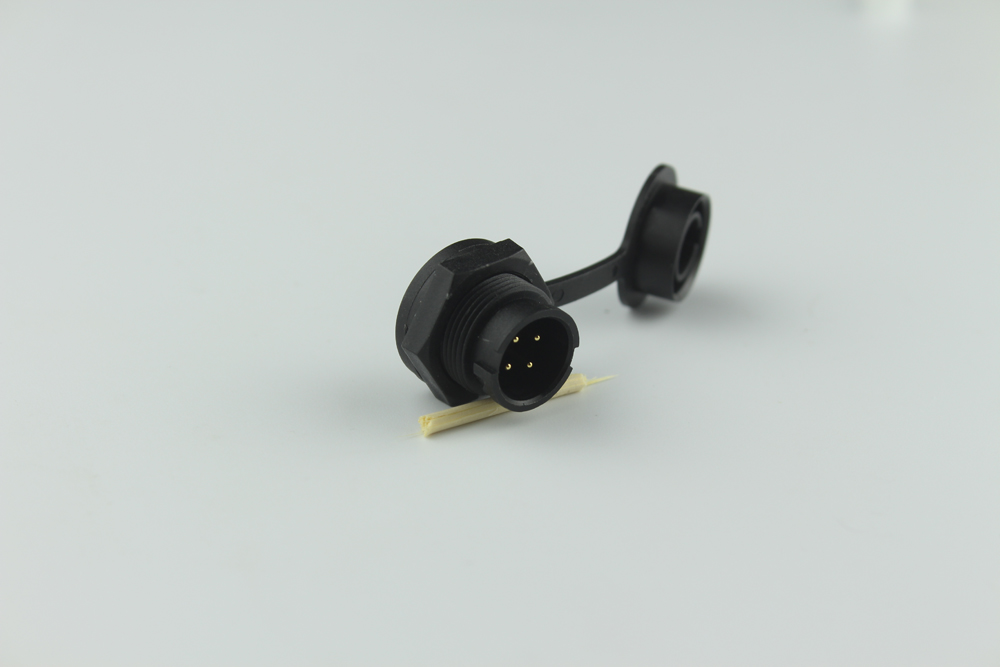

Front nut single cut buckle receptacle
The plug and socket housing and insulation are both made of high-density nylon material.
The housing is insulated, flame-retardant,and has a long service life.
Type | Snap lock |
Shell material | PA66 |
Insert material | PA66 , max temperature 200℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 15.8mm |
Number of crimp contact | 2~8pin |
