Type | Snap lock |
Applicable pin/contact | Female (socket) |
Shell material | Aluminum alloy (galvanized) |
Insert material | Rubber,max temperature 150℃ |
Contact material | Brass |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |

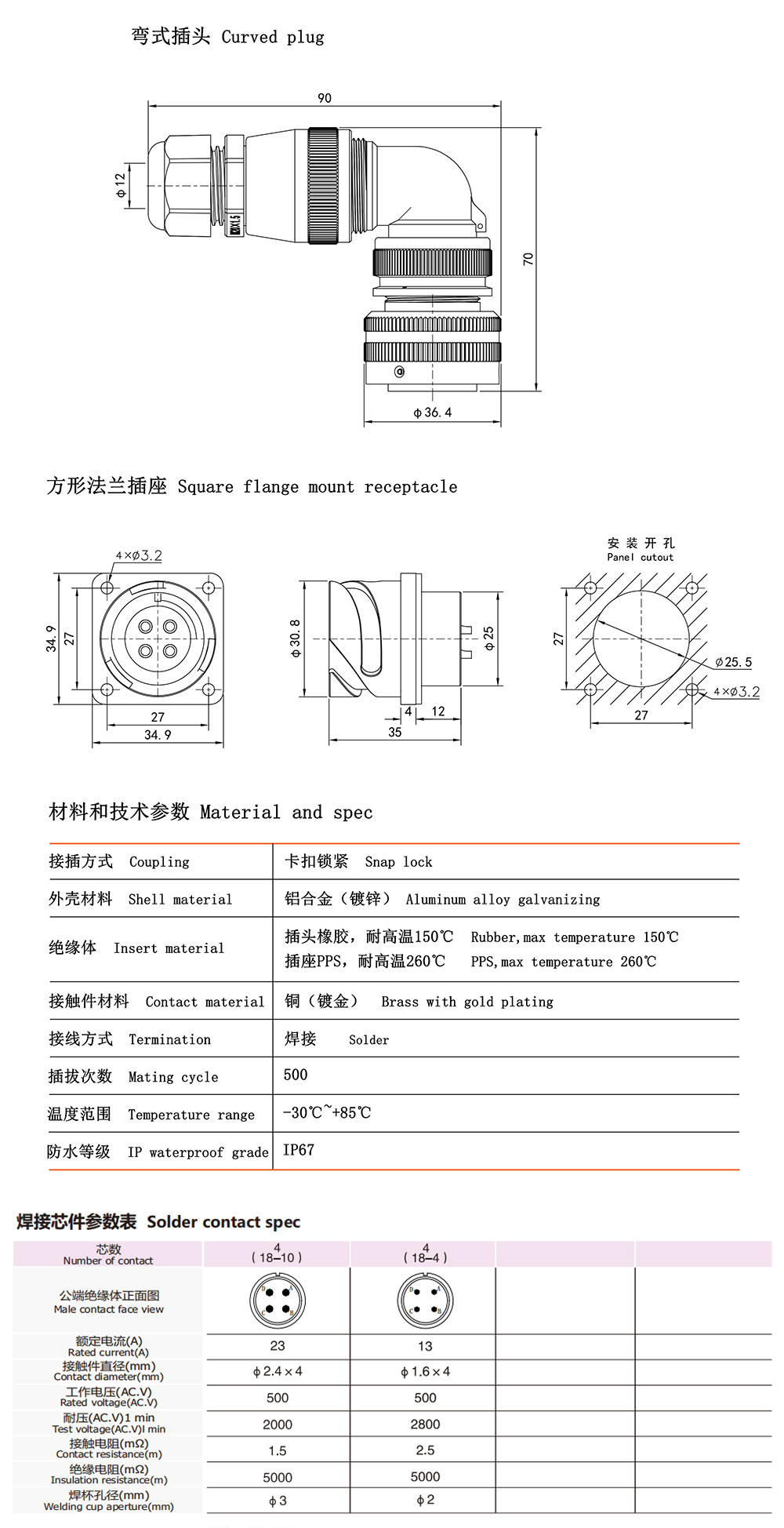

Panel hole cutout diameter | 25.5mm |
Number of crimp contact | 4pin |
Allowable Current (A） | 23 |
Contact diameter(mm) | Φ2.4*4 |
Allowable voltage(AC.V) | 500 |
Test voltage(AC.V)/min | 2000 |
Contact resistance(m) | 1.5 |
Insulation resistance(m) | 5000 |
Welding cup aperture(mm) | Φ3 |
