【Features】This is a waterproof, screw type panel-mount receptacle . A special chemical surface treatment is used. It is mounted on a panel and connected to a straight plug. Demonstrates waterproof function when mated. 【Applications】Ideal for cable extension and relaying between devices.

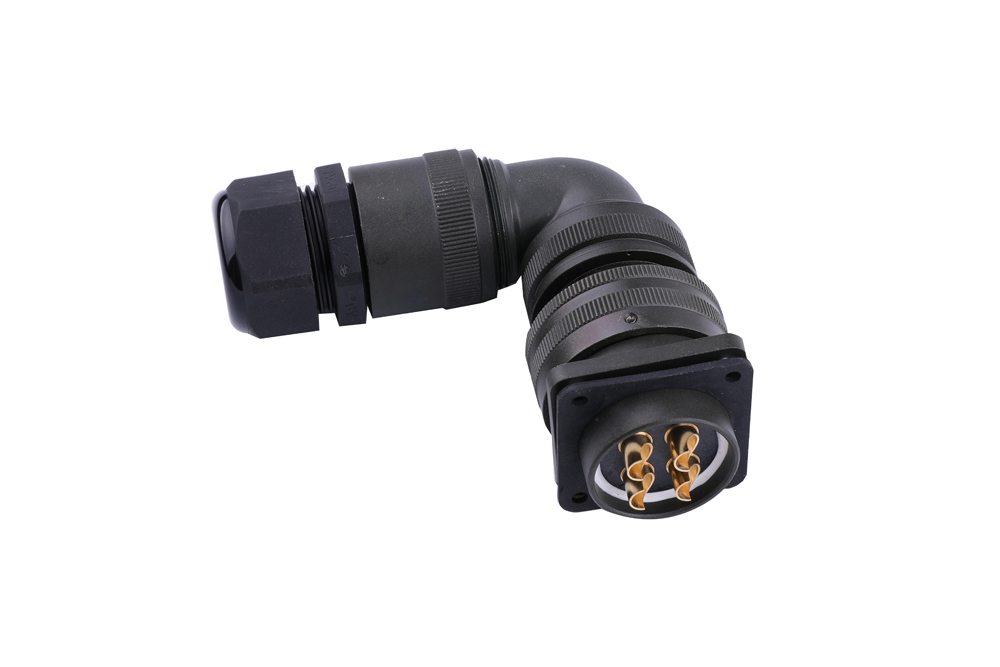

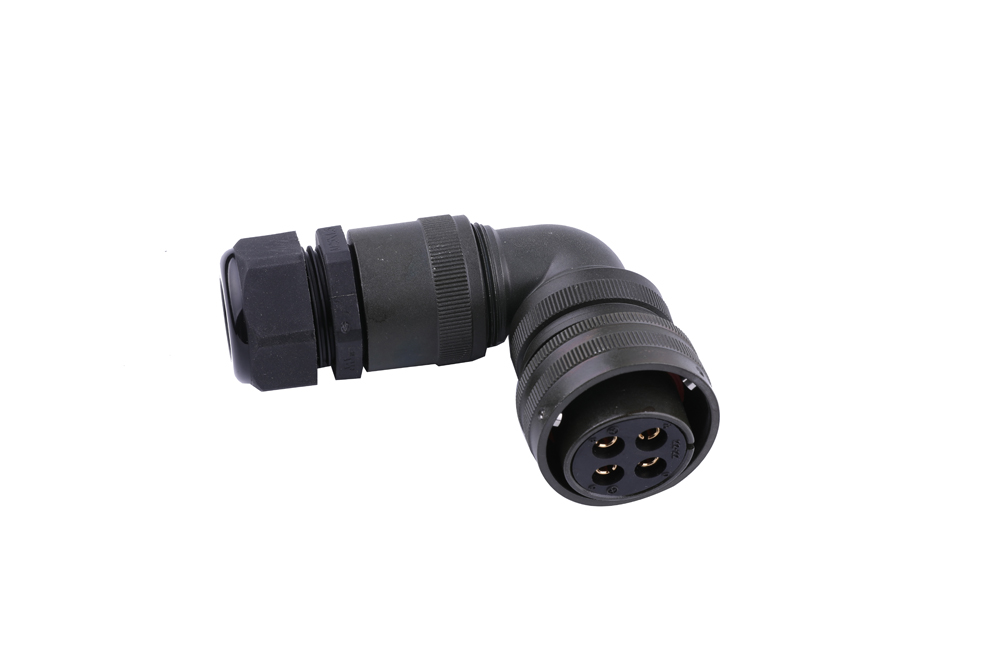

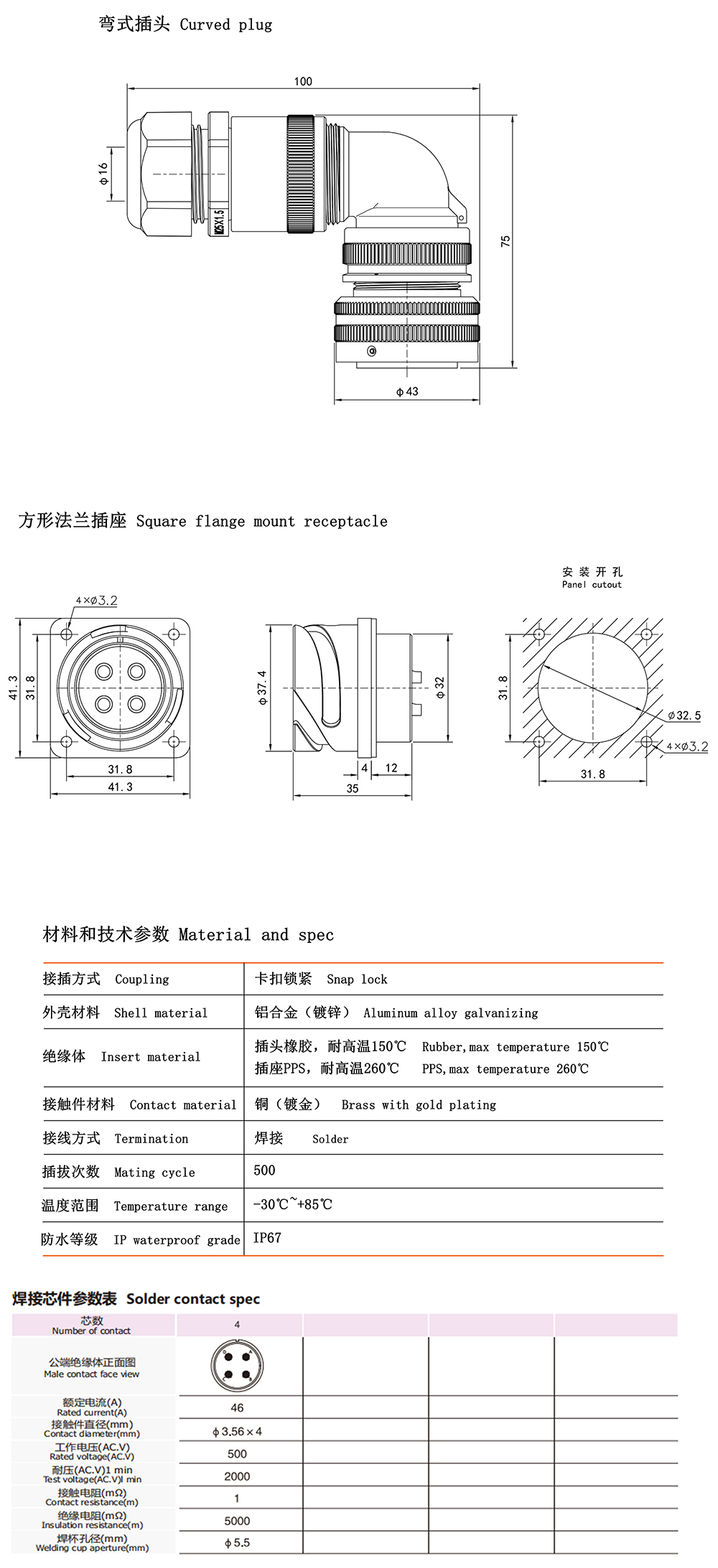

Curved plug

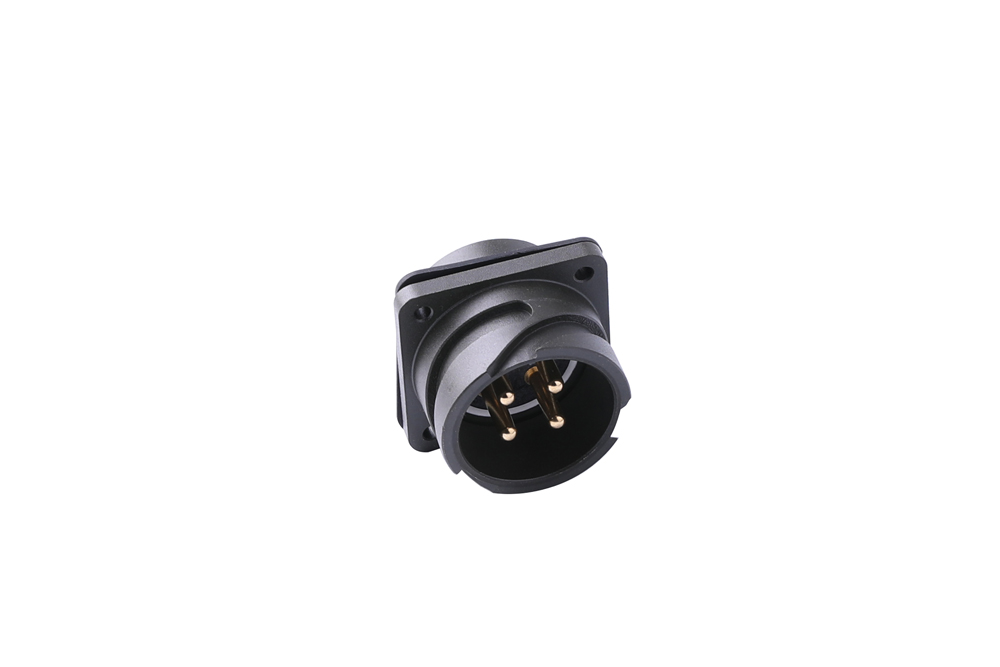

Square flange mounyt receptacle
【Features】
Connects to the relay adapter and panel mounting receptacle.
● It has a waterproof structure class IP67, which makes it suitable for use in places exposed to water or dust.
● Features high waterproof performance while at the same time realizing a surprisingly low price.
● Integrated with a cable clamp, it allows space to be used more economically.
● 5015 Model.
Type | Snap lock |
Applicable pin/contact | Female (socket) |
Shell material | Aluminum alloy (galvanized) |
Insert material | Rubber,max temperature 150℃ |
Contact material | Brass with gold plating |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 32.5mm |
Number of crimp contact | 4pin |
Allowable Current (A） | 46 |
Contact diameter(mm) | Φ3.56*4 |
Allowable voltage(AC.V) | 500 |
Test voltage(AC.V)/min | 2000 |
Contact resistance(m) | 1 |
Insulation resistance(m) | 5000 |
Welding cup aperture(mm) | Φ5.5 |
Caution When fitted with the non-waterproof model, the IP67 waterproofing performance will not be maintained.
Does not support key position changes.
