【Features】circular electric connector adopts threaded type robust construction, has the advantages of reliable contact, small size, high density, good environmental resistance and so on. It also has good anti-dampness, anti-mold, anti-rain and anti-dust performance. They are widely used in aviation, aerospace, ships and other military fields.

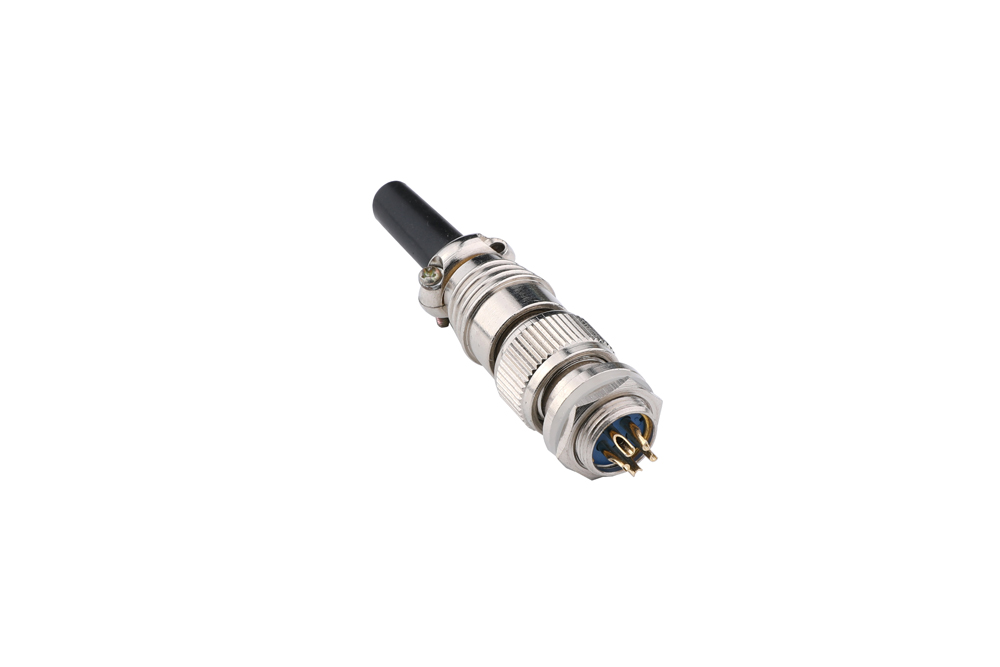

X12 Straight sheath plug with Rear nut round threaded receptacle

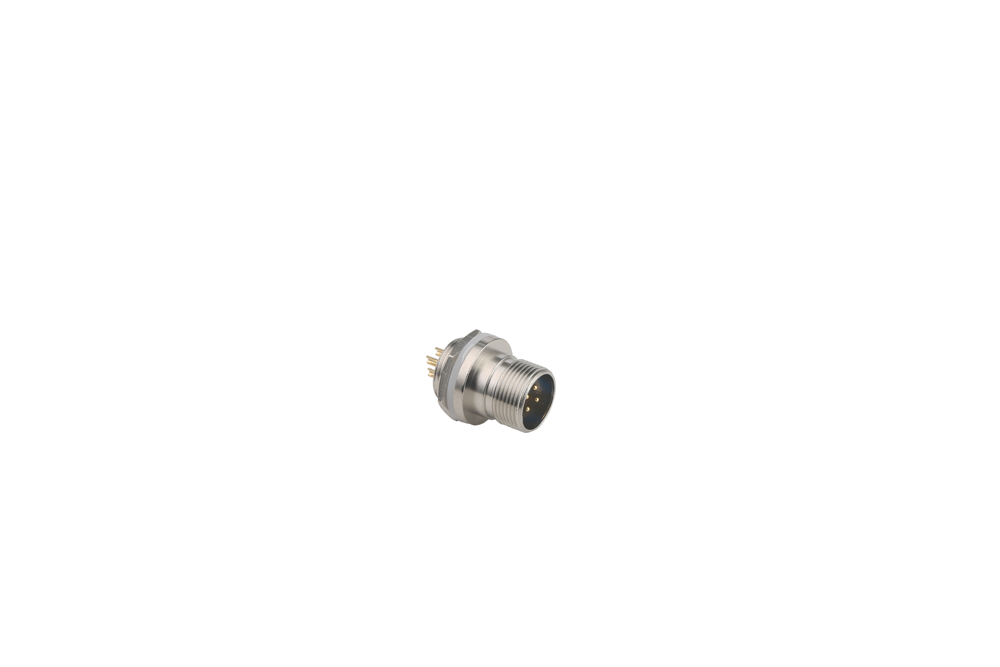

Rear nut round threaded receptacle
Type | Threaded |
Shell material | Brass with chromium nickel plated |
Insert material | PBT , max temperature 180℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP65(IEC60529) |
Panel hole cutout diameter | 12mm |
Number of crimp contact | 4~5pin、 7pin |
Allowable Current (A） | 5 |
Contact diameter(mm) | Φ1 |
Allowable voltage(AC.V) | 200、 125 |
Test voltage(AC.V)/min | 1500、 1000 |
Contact resistance(m) | 5 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ1 |
