【Features】This is a waterproof, screw type panel-mount receptacle .High voltage resistance; easy to weld; high cost performance; lightweight; multiple specifications. It is mounted on a panel and connected to a straight plug. The 5015 series connectors comply with the U.S. military standard Mil-C-5015 (GJB600). The products feature a high-strength aluminum alloy housing, threaded connections, fool-proof key, and multiple key way configurations for easy identification. They are equipped with high-temperature and high-voltage-resistant synthetic rubber insulators and are available in both soldered and crimped versions.【Applications】Ideal for cable extension and relaying between devices.

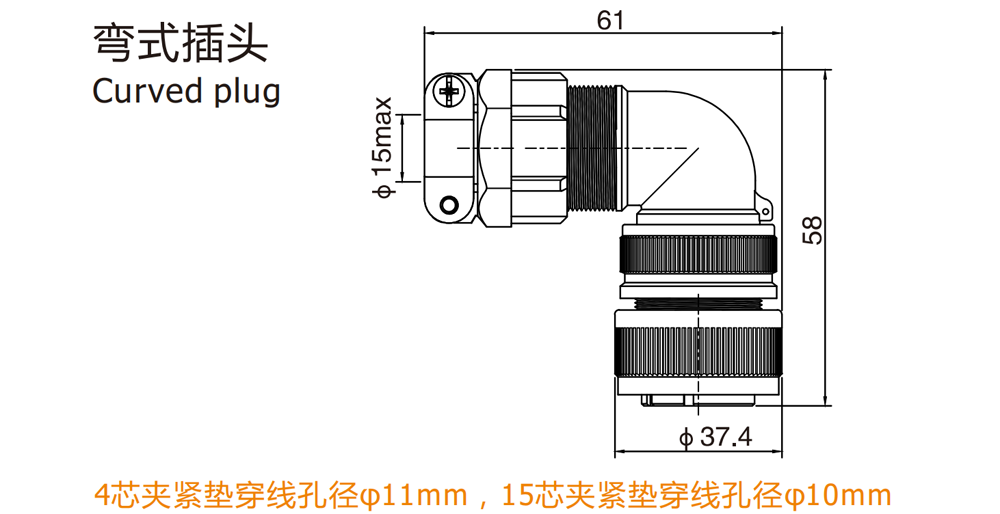

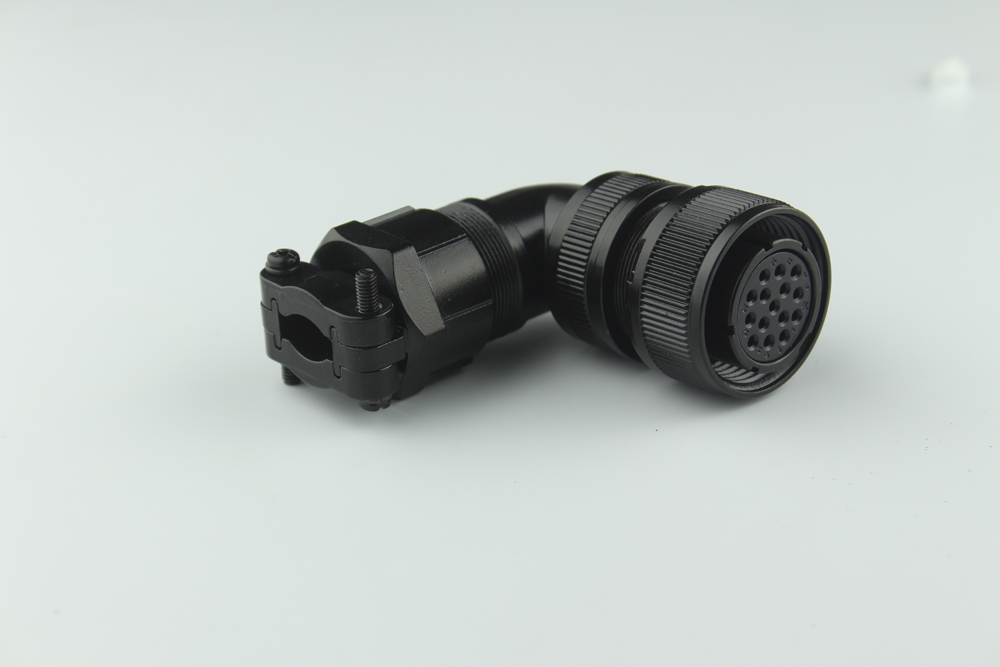

Curved plug

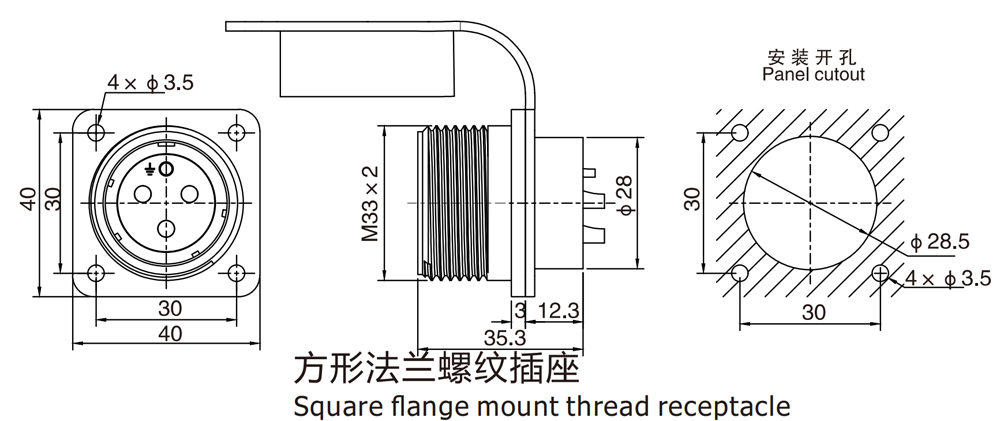

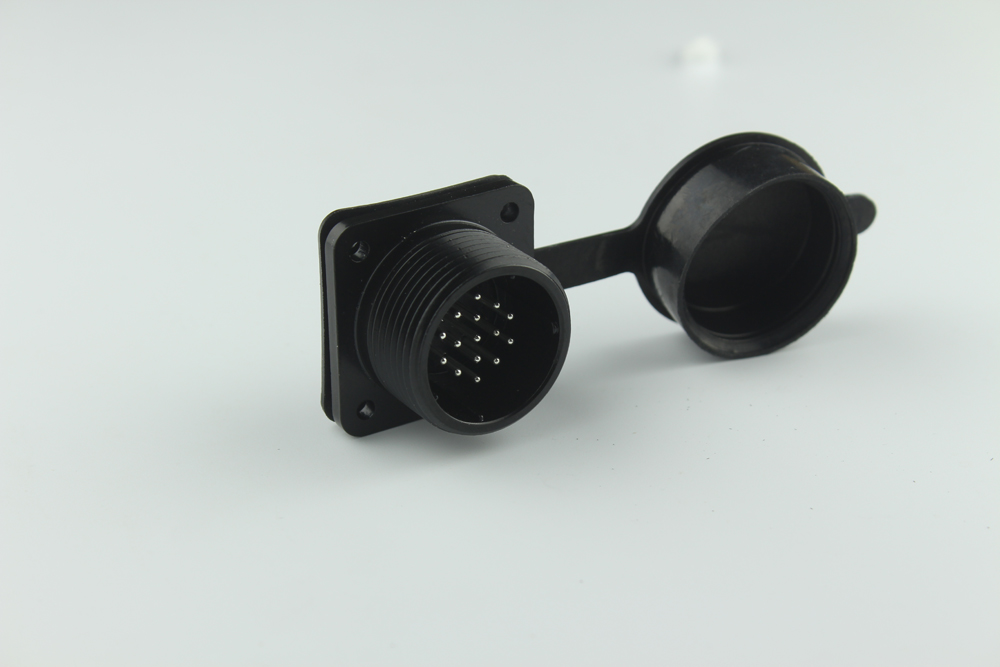

Square flange mount thread receptacle

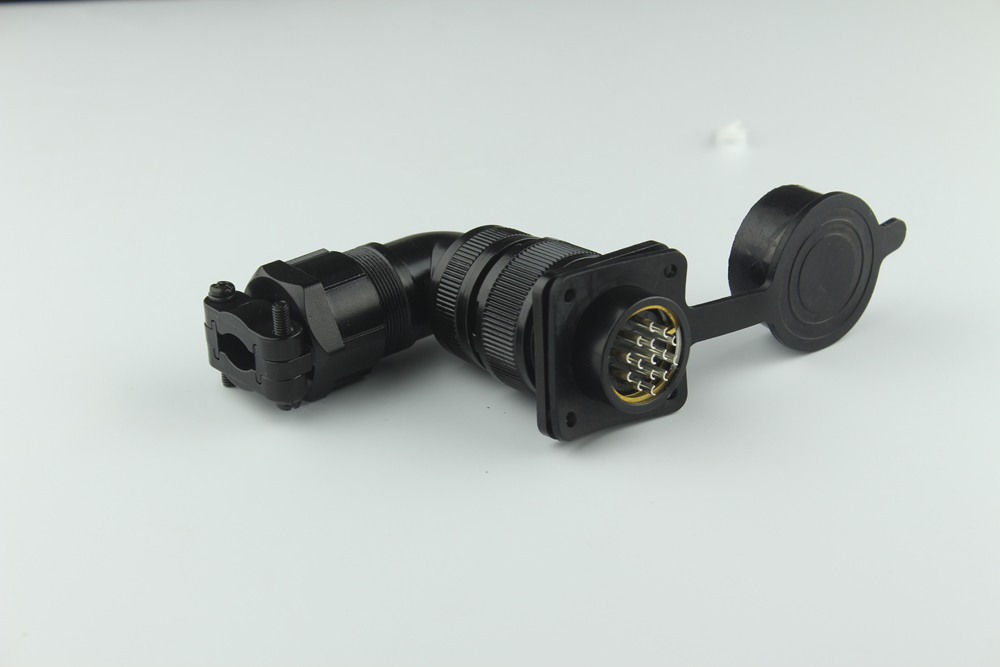

Curved plug & Square flange mount thread receptacle
【Features】
Connects to the relay adapter and panel mounting receptacle.
● It has a waterproof structure class IP67, which makes it suitable for use in places exposed to water or dust.
● Features high waterproof performance while at the same time realizing a surprisingly low price.
● Integrated with a cable clamp, it allows space to be used more economically.
● 5015 Model.

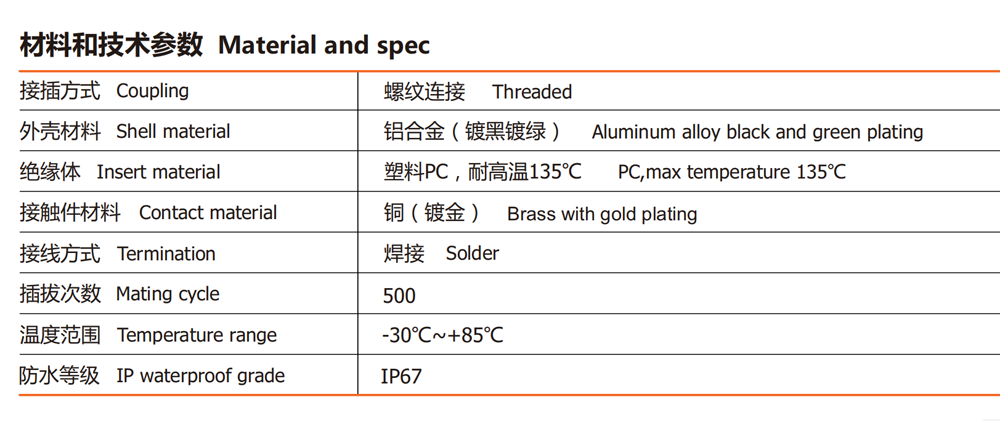

Type | Threaded |
Applicable pin/contact | Female (socket) |
Shell material | Aluminum alloy black and green plating |
Insert material | PC,max temperature 150℃ |
Contact material | Brass with silver plating |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 30mm |

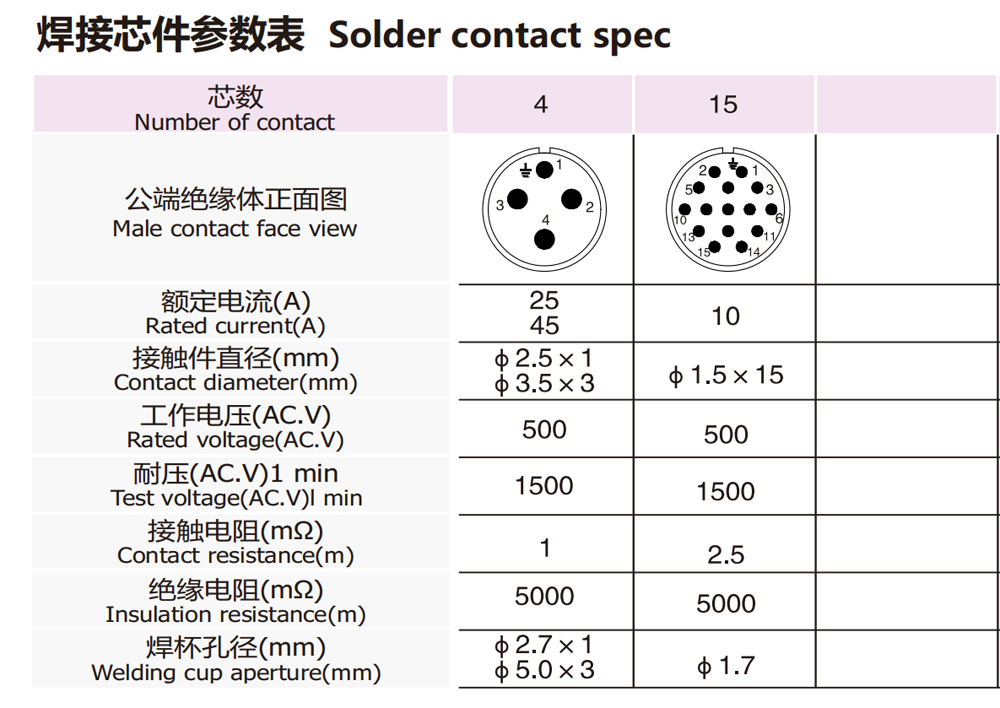

Number of crimp contact | 4pin 15pin |
Allowable Current (A） | 25/15 10 |
Contact diameter(mm) | Φ2.5*1 |
Allowable voltage(AC.V) | 500 500 |
Test voltage(AC.V)/min | 1500 1500 |
Contact resistance(m) | 1 2.5 |
Insulation resistance(m) | 5000 5000 |
Welding cup aperture(mm) | Φ2.7*1 |
Caution When fitted with the non-waterproof model, the IP67 waterproofing performance will not be maintained.
Does not support key position changes.
