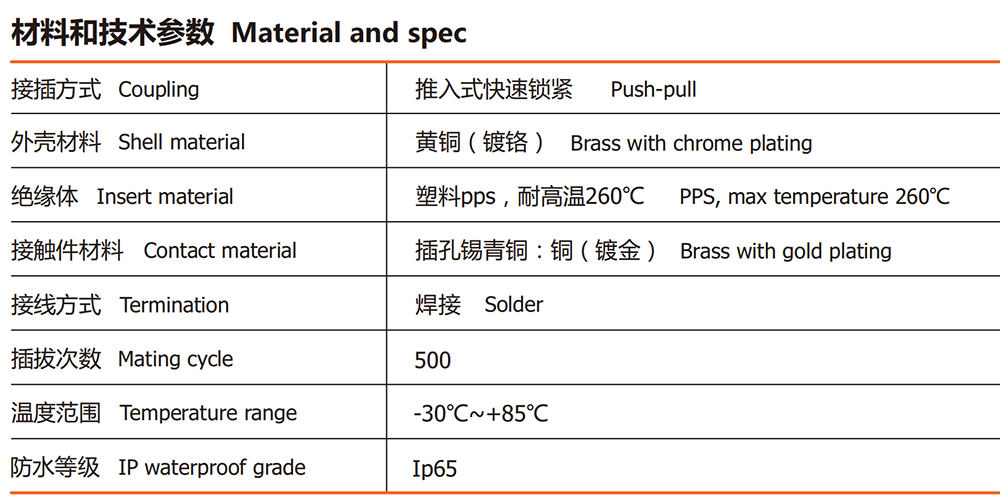

Type | Snap lock |
Shell material | Brass with chrome plated |
Insert material | PPS , max temperature 260℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP65(IEC60529) |

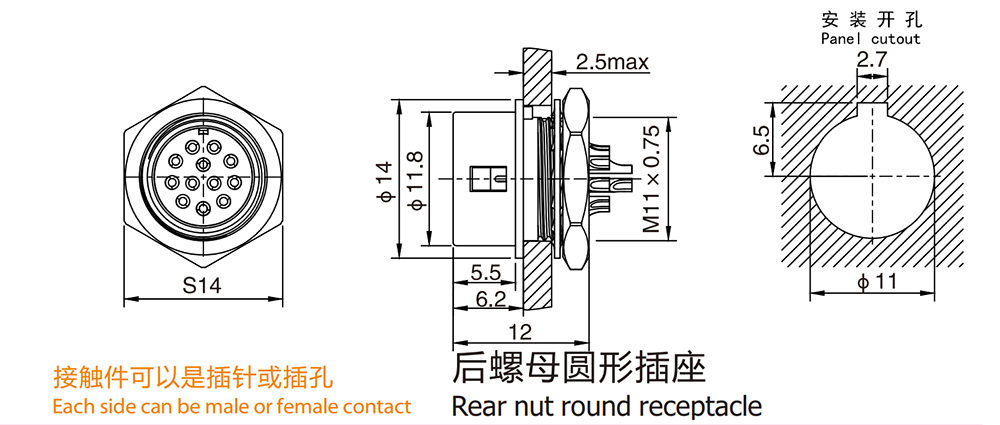

Panel hole cutout diameter | 11mm |

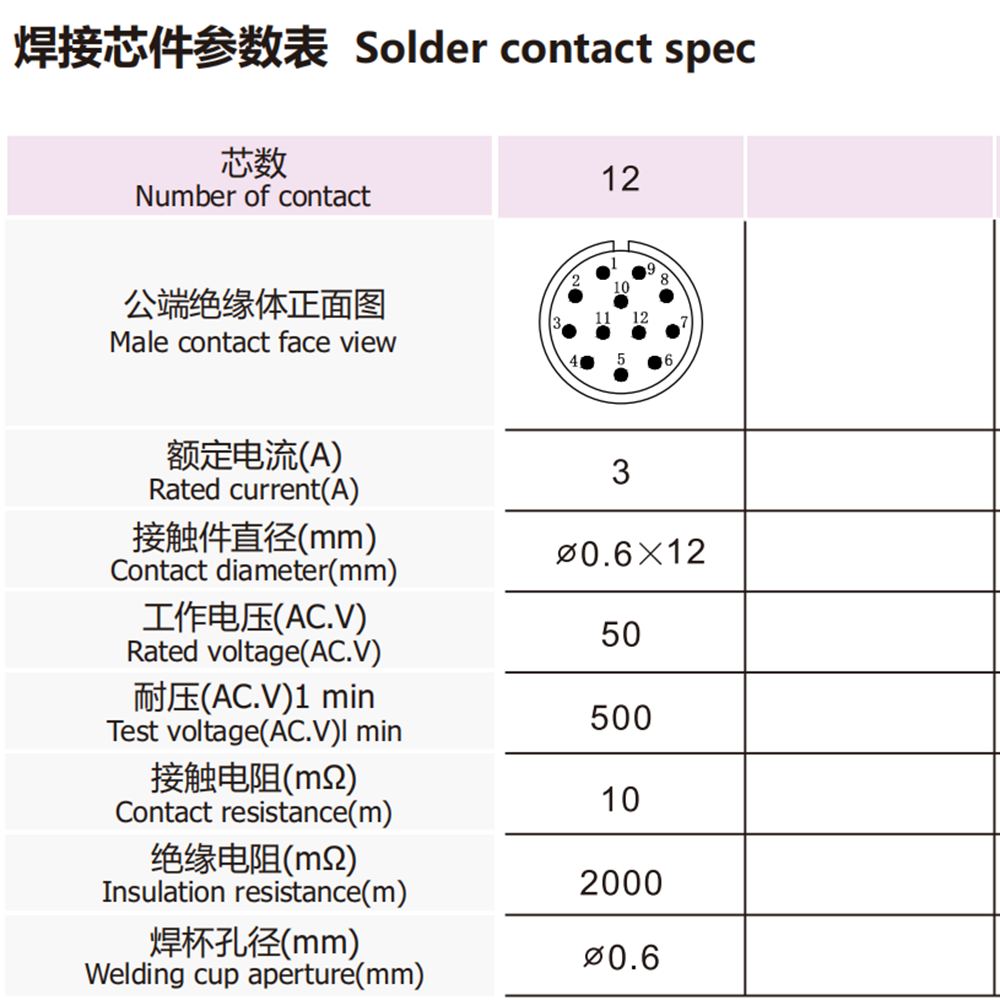

Number of crimp contact | 12pin |
Allowable Current (A） | 3 |
Contact diameter(mm) | Φ0.6 |
Allowable voltage(AC.V) | 50 |
Test voltage(AC.V)/min | 500 |
Contact resistance(m) | 10 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ0.6 |
