【Features】circular electric connector adopts bayonet type fast connection, has the advantages of fast connection, reliable contact, small size, high density, good environmental resistance and so on. It also has good anti-dampness, anti-mold, anti-rain and anti-dust performance. 【Applications】They are widely used in aviation, aerospace, ships and other military fields.

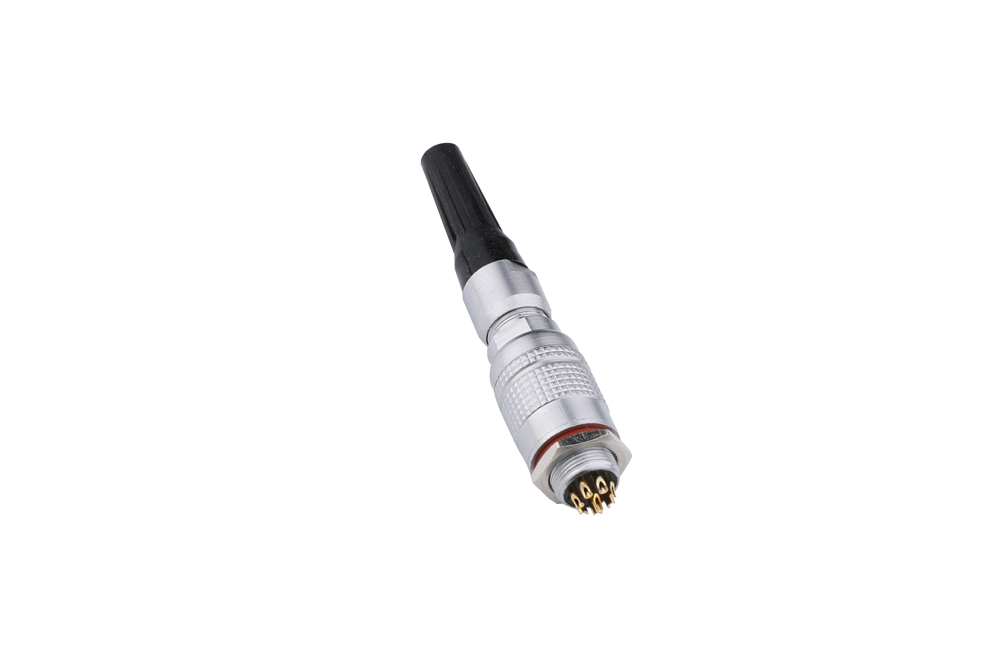

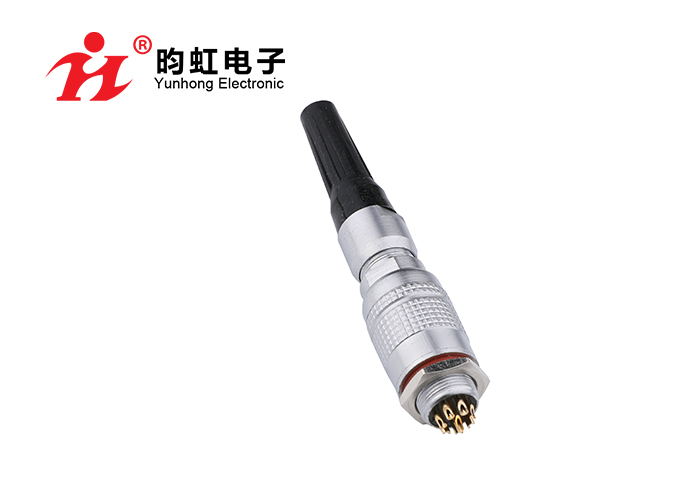

Straight sheath plug

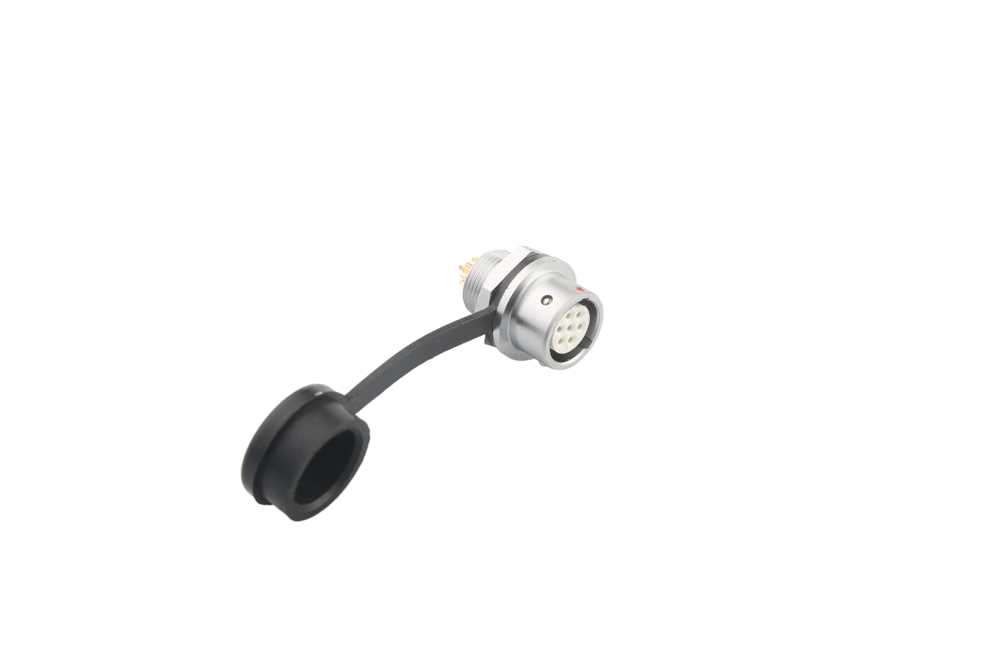

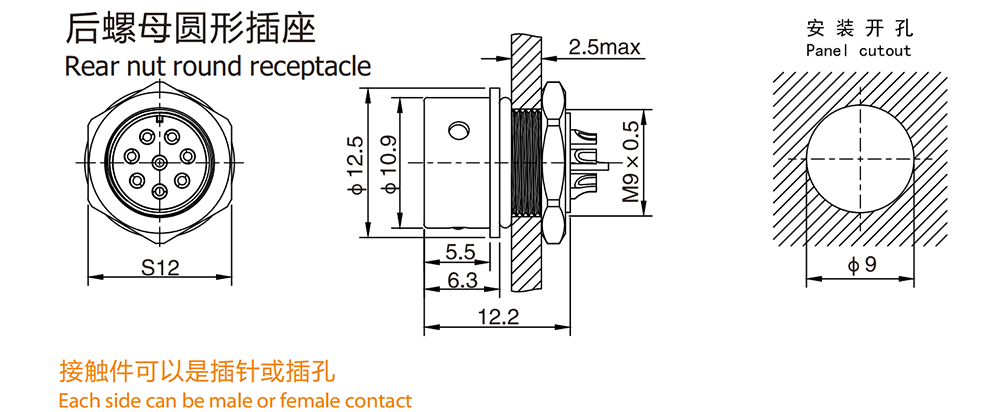

Rear nut round receptacle
Type | Push-pull |
Shell material | Brass with chrome plated |
Insert material | PPS , max temperature 260℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP65(IEC60529) |
Panel hole cutout diameter | 10mm |
Number of crimp contact | 8pin |
Allowable Current (A） | 3 |
Contact diameter(mm) | Φ0.6 |
Allowable voltage(AC.V) | 50 |
Test voltage(AC.V)/min | 500 |
Contact resistance(m) | 10 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ0.6 |
