【Features】The Yunhong’ XS Series connector is expertly crafted from durable brass with chrome plating, designed specifically for applications demanding rapid connections and robust construction. As large-sized option within the Yunhong’ XS Series, the XS16 Series delivers reliability and versatility for power and signal applications. 【Applications】Featuring a sophisticated and robust appearance, the XS16 Series connectors’ durable brass shells with chrome plating make them ideal for a wide range of applications, including medical devices, entertainment systems, beauty equipment, testing and measuring instruments, communications technology, and various other demanding fields.

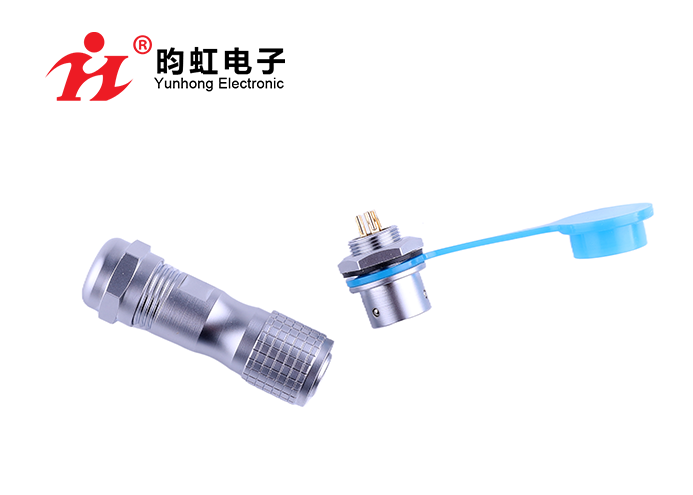

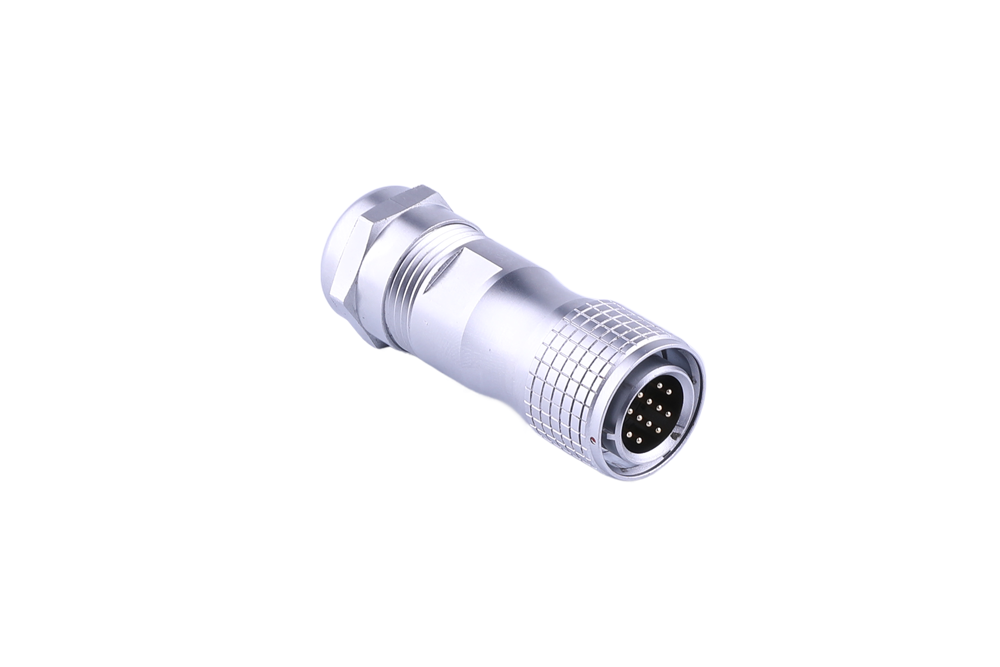

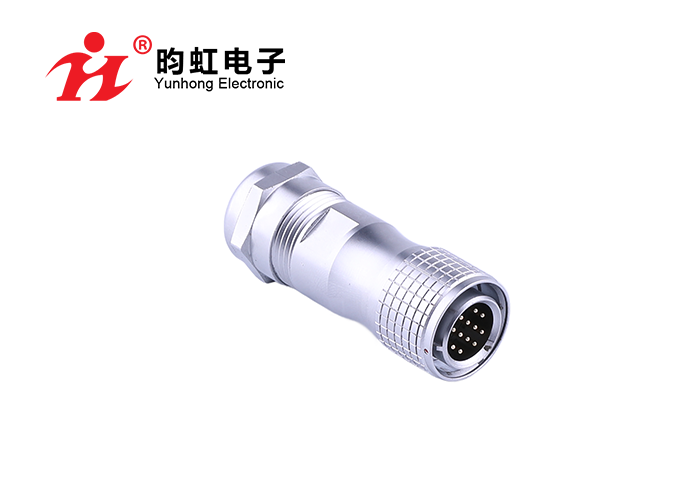

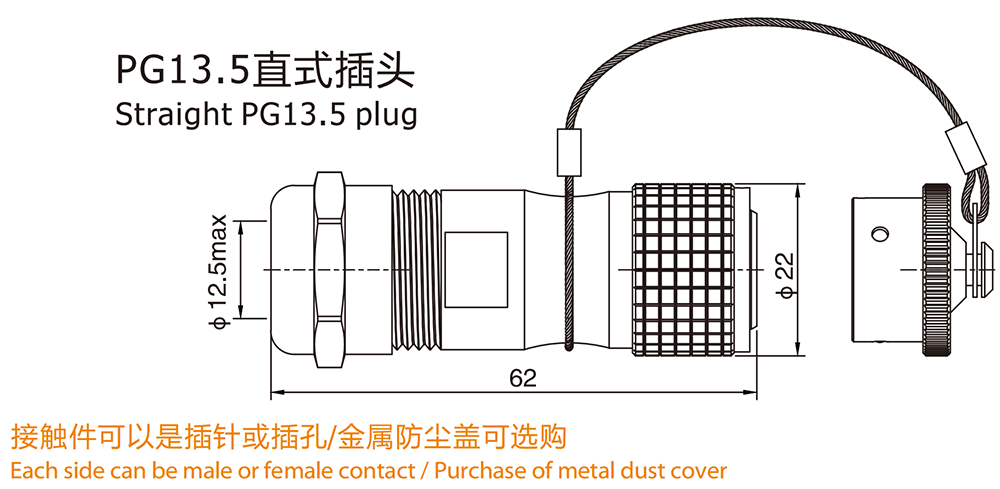

XS16 PG13.5plug

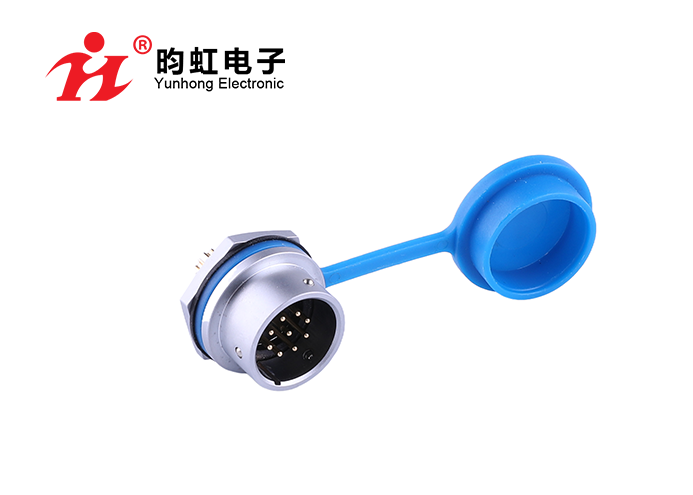

Docking XS16 PG13.5 round receptacle

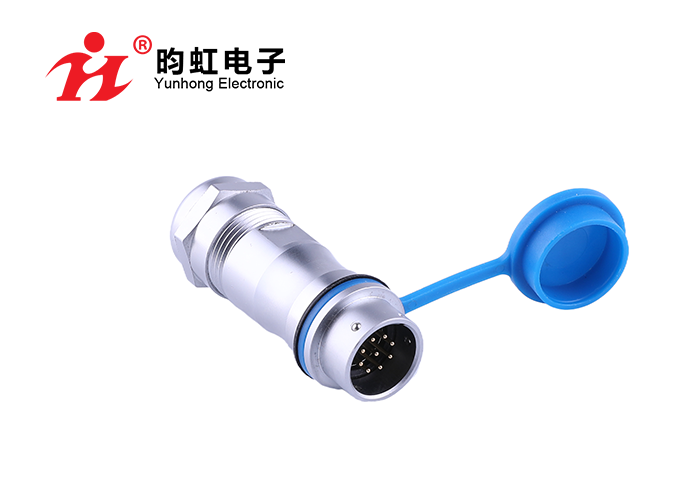

XS16 PG13.5 rear nut round receptacle

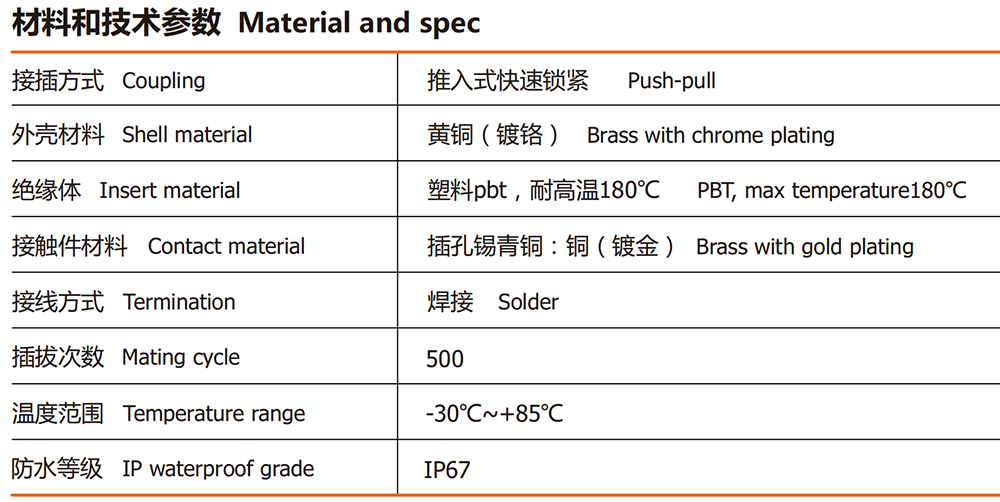

Type | Push-pull |
Shell material | Brass with chrome plated |
Insert material | PBT , max temperature 180℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 16mm |

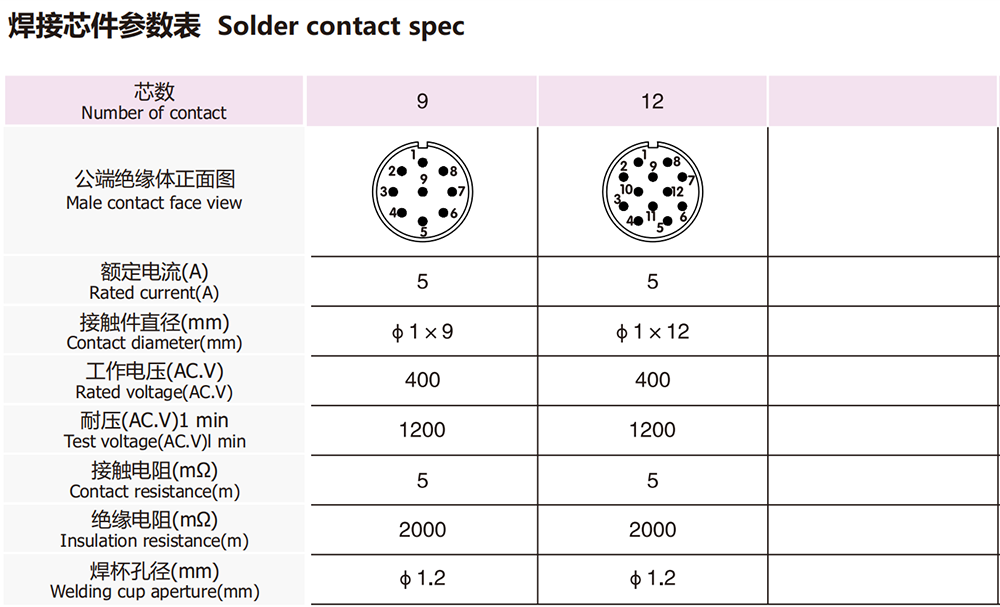

Number of crimp contact | 9pin、 12pin |
Allowable Current (A） | 5 |
Contact diameter(mm) | Φ1 |
Allowable voltage(AC.V) | 400 |
Test voltage(AC.V)/min | 1200 |
Contact resistance(m) | 5 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ1.2 |
【Applications】
Yunhong XS series has been a popular choice for controller projects. With IP67 protection, a push-pull fast connection function, XS series can be applied for a variety of industries and keep stable connecting even in harsh environments.
