【Features】The Yunhong’ XS Series connector is expertly crafted from durable brass with chrome plating, designed specifically for applications demanding rapid connections and robust construction. As large-sized option within the Yunhong’ XS Series, the XS16 Series delivers reliability and versatility for power and signal applications. 【Applications】Featuring a sophisticated and robust appearance, the XS16 Series connectors’ durable brass shells with chrome plating make them ideal for a wide range of applications, including medical devices, entertainment systems, beauty equipment, testing and measuring instruments, communications technology, and various other demanding fields.

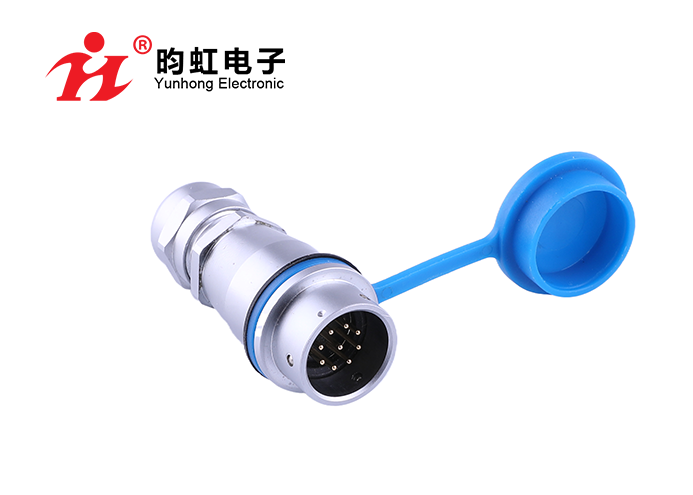

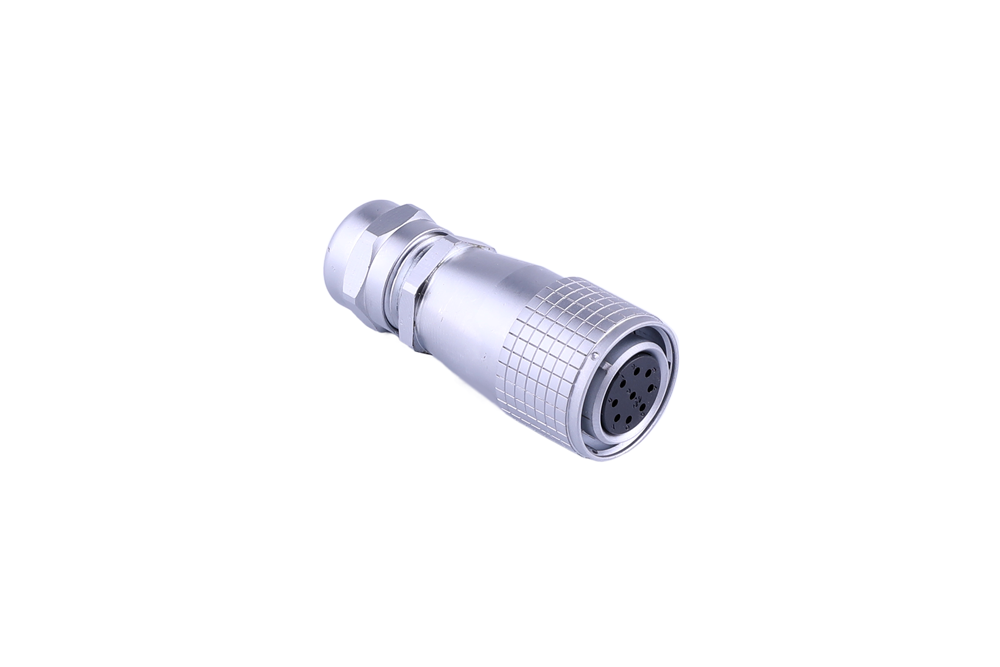

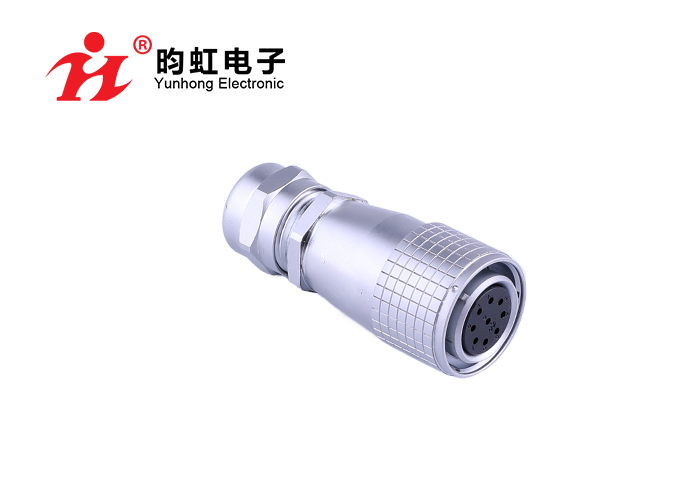

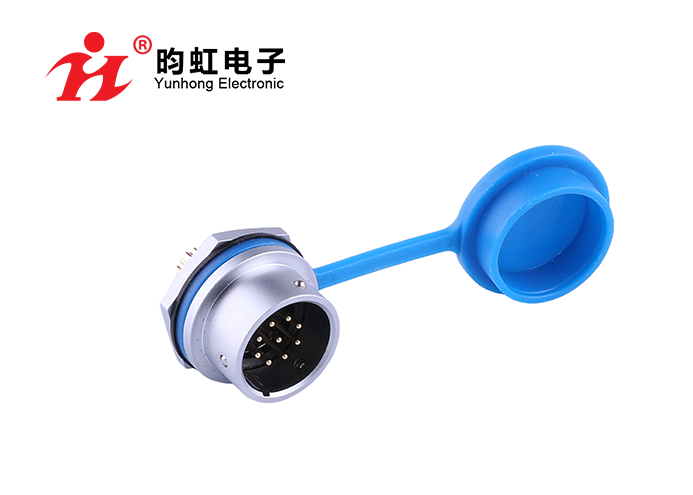

XS16 PG9 Straight plug

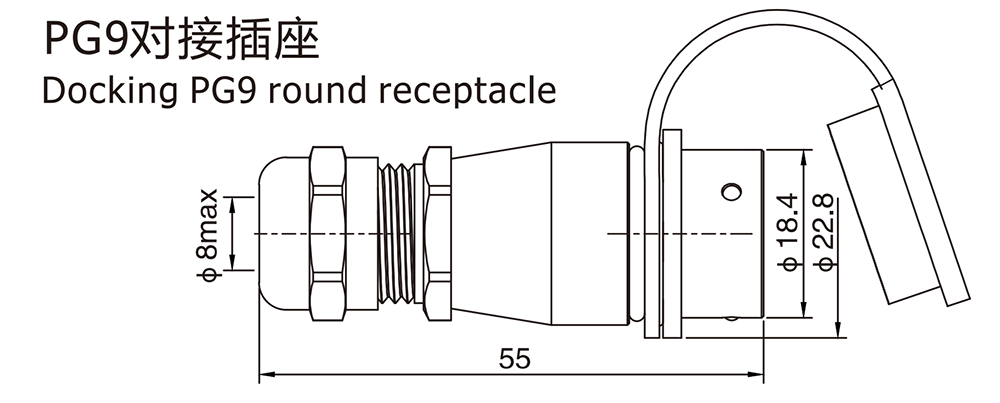

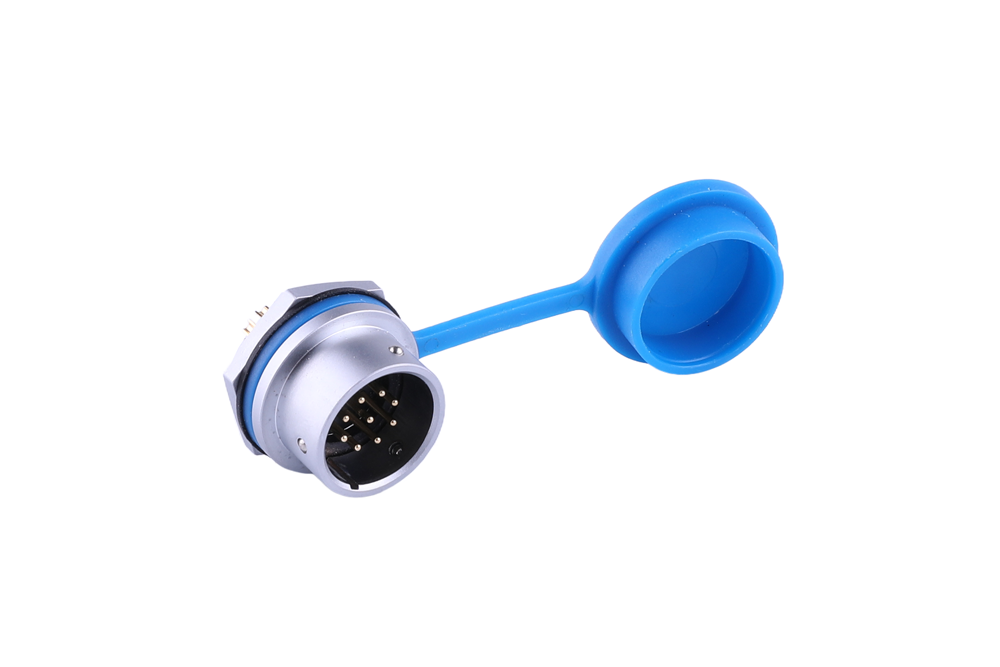

Docking XS16 PG9 round receptacle

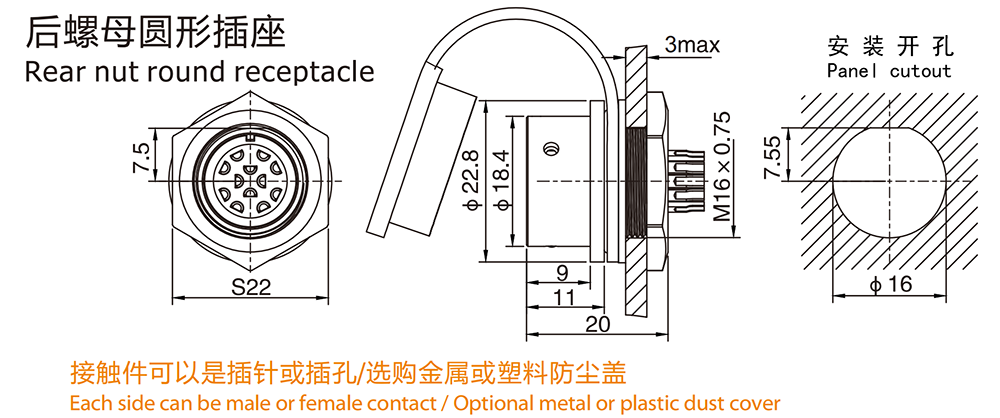

XS16 PG9 rear nut round receptacle

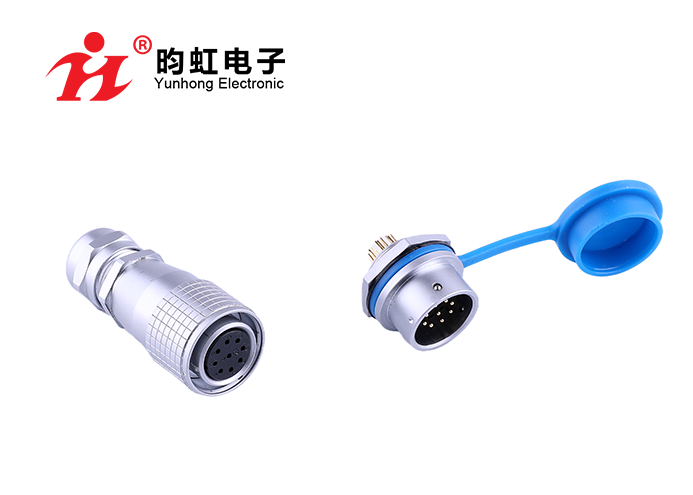

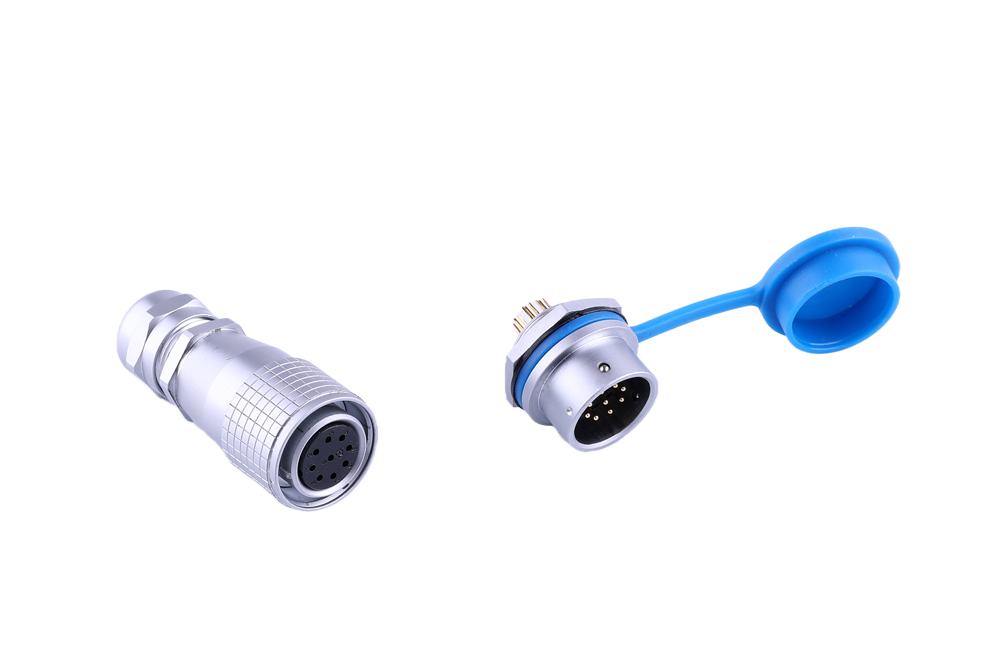

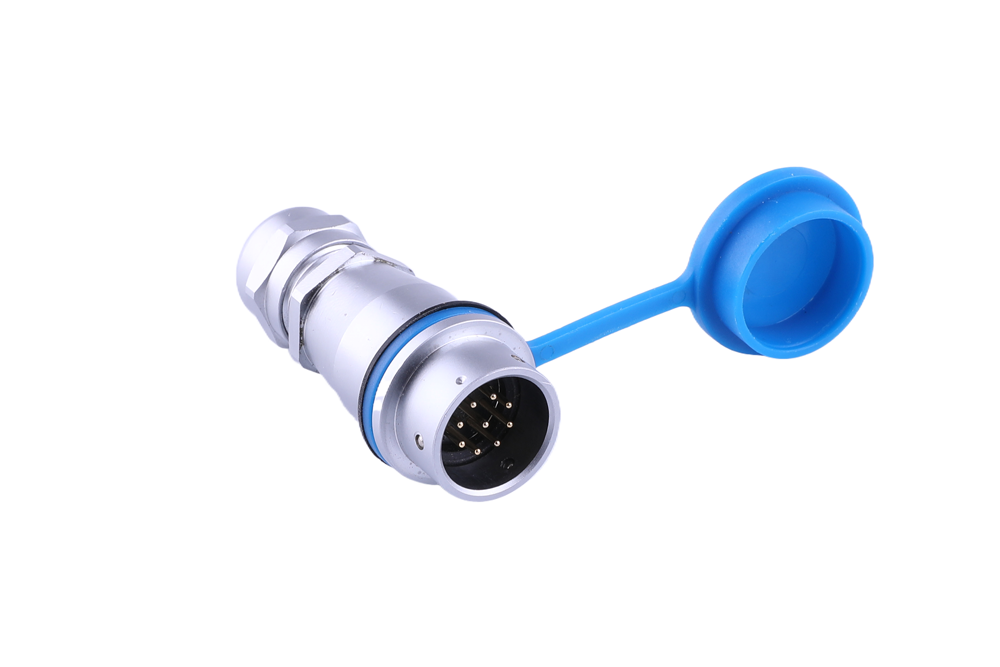

XS16 PG9 Straight plug with rear nut round receptacle

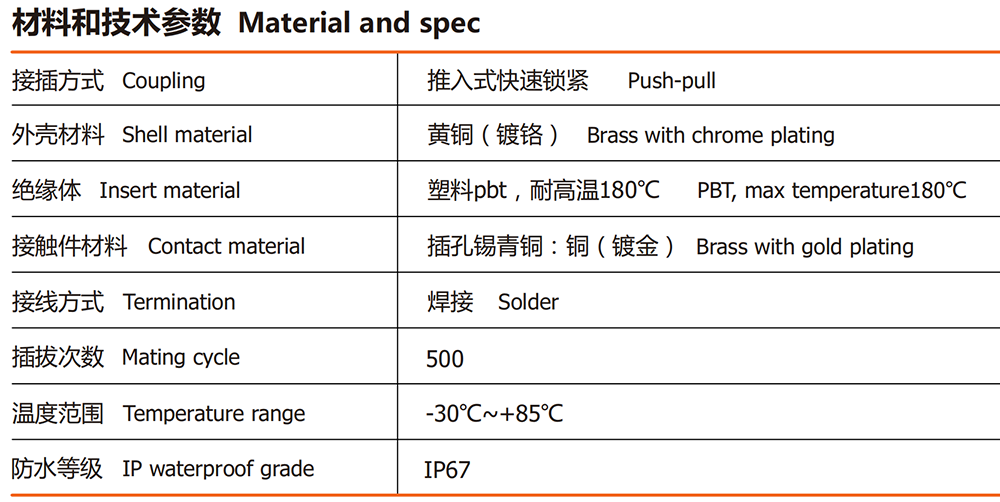

Type | Push-pull |
Shell material | Brass with chrome plated |
Insert material | PBT , max temperature 180℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 16mm |

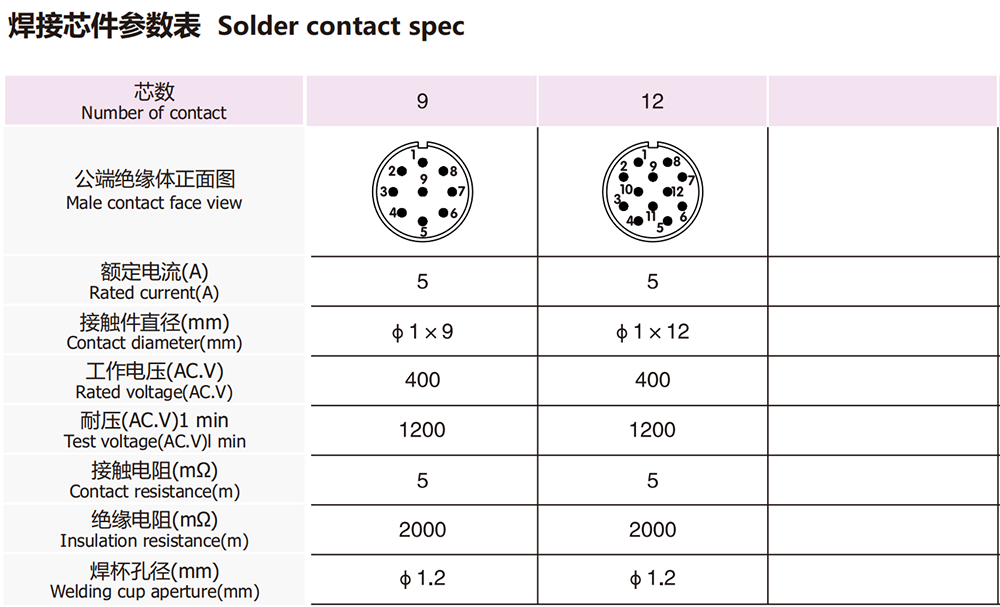

Number of crimp contact | 9pin、 12pin |
Allowable Current (A） | 5 |
Contact diameter(mm) | Φ1 |
Allowable voltage(AC.V) | 400 |
Test voltage(AC.V)/min | 1200 |
Contact resistance(m) | 5 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ1.2 |
【Applications】

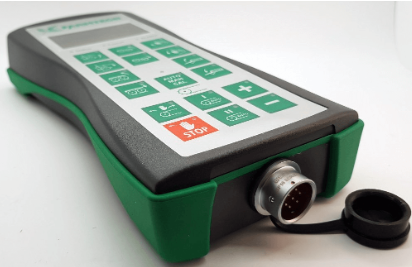

Featuring a sophisticated and robust appearance, the XS16 Series connectors’ durable brass shells with chrome plating make them ideal for a wide range of applications, including medical devices, entertainment systems, beauty equipment, testing and measuring instruments, communications technology, and various other demanding fields.

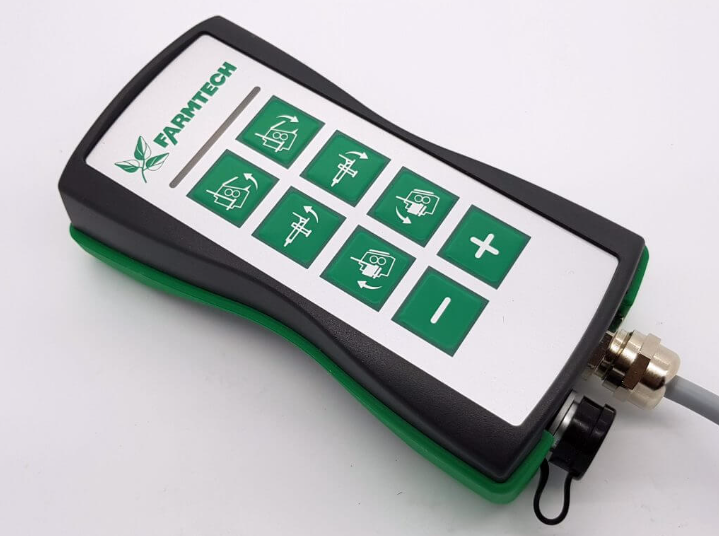

XS16 series Case-Remote Controllers
