【Features】The Yunhong’ SF10 Series is brass with chrome plating connector designed for applications requiring fast connection and ease of handling. As one of the smaller sizes in the SF Series, the SF10 offers versatile mounting options, including panel mount, cable mount, and in-line cable mount, providing flexibility for cable-to-cable or cable-to-panel connections. 【Applications】 The SF10 Series is perfect for extra-low voltage or data applications like LED screens, security camera systems, medical device instrumentation, testing or measuring devices, and other data and low-voltage applications.

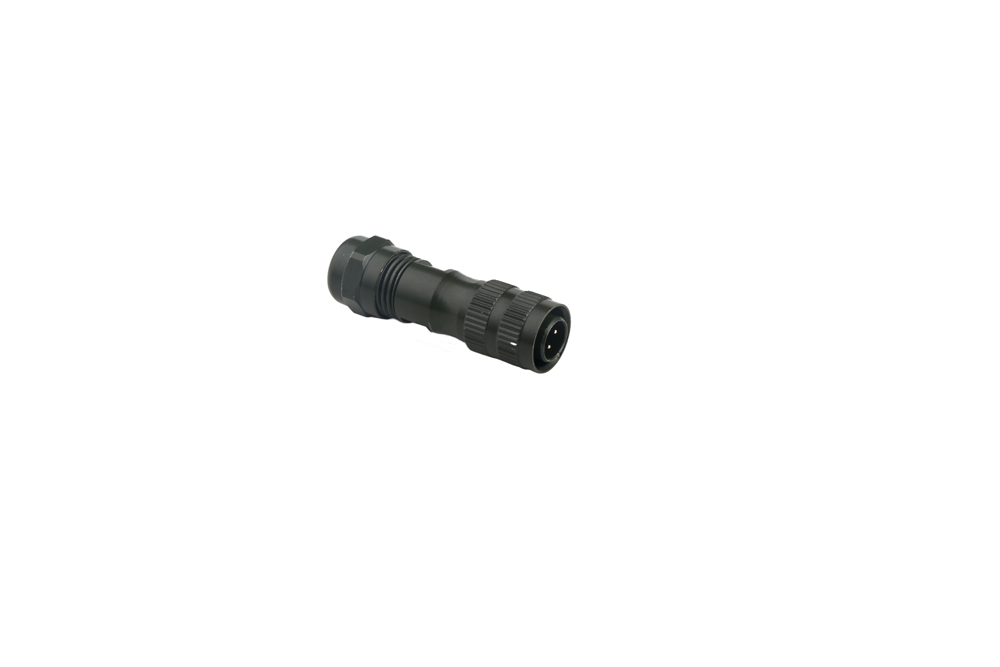

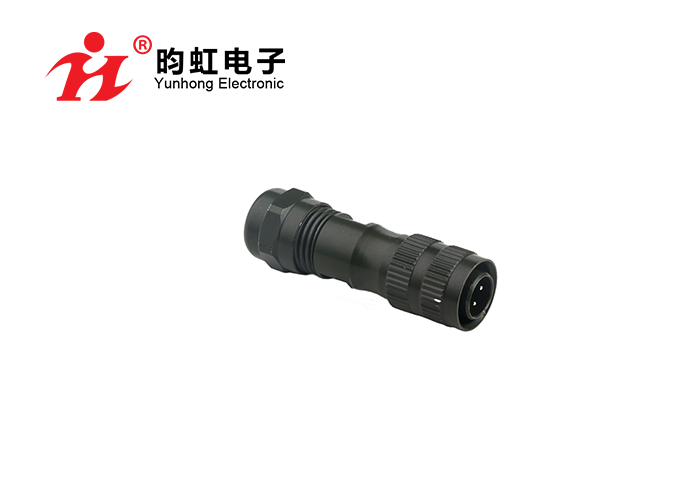

Straight plug

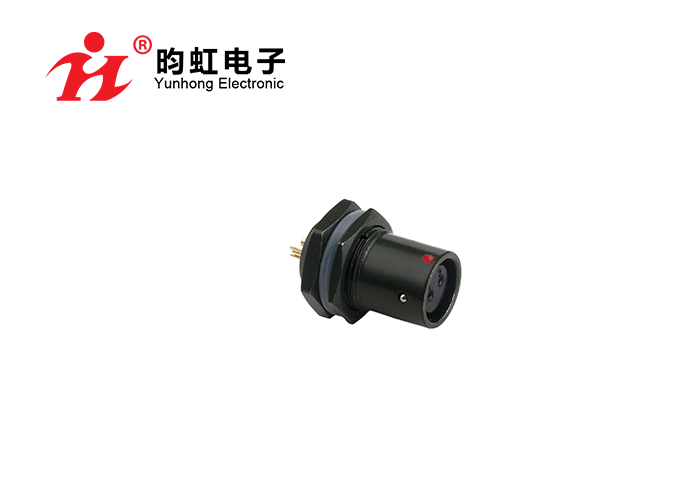

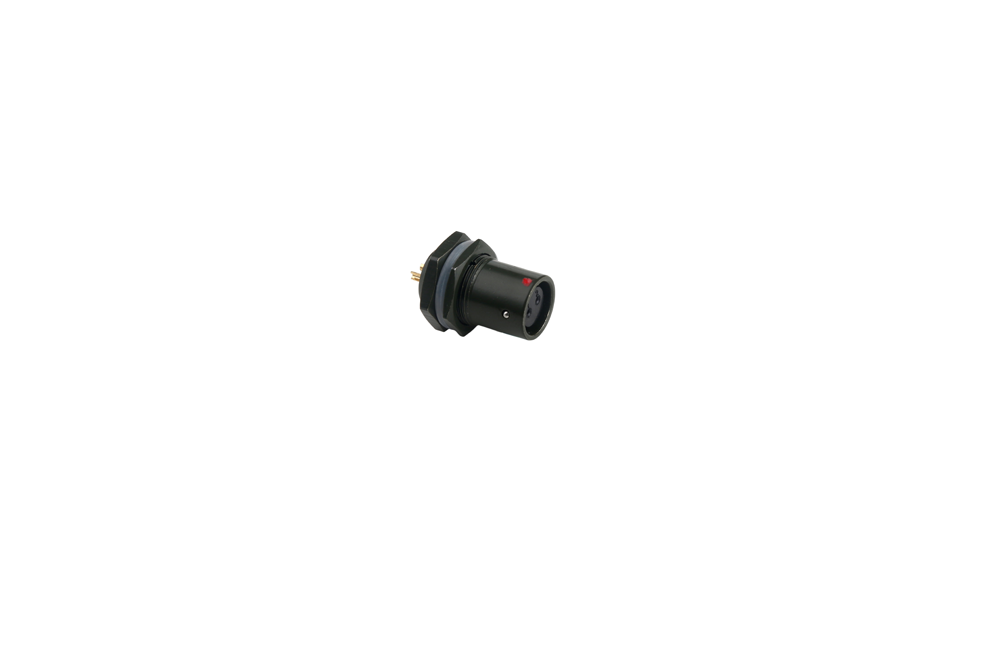

Front nut square receptacle（Army Green）

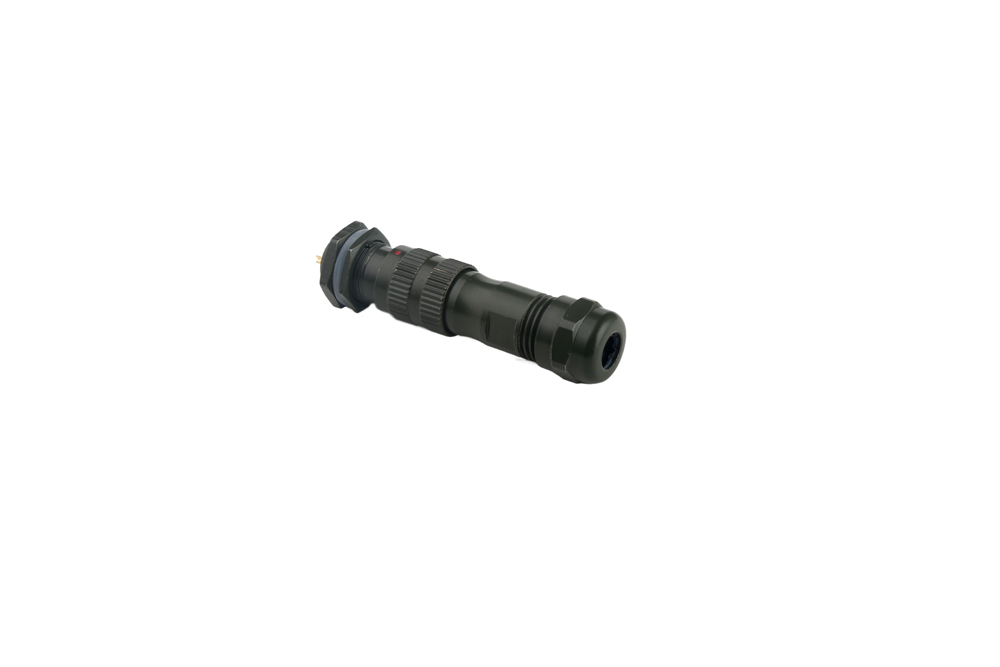

Straight plug & Front nut square receptacle（Army Green）

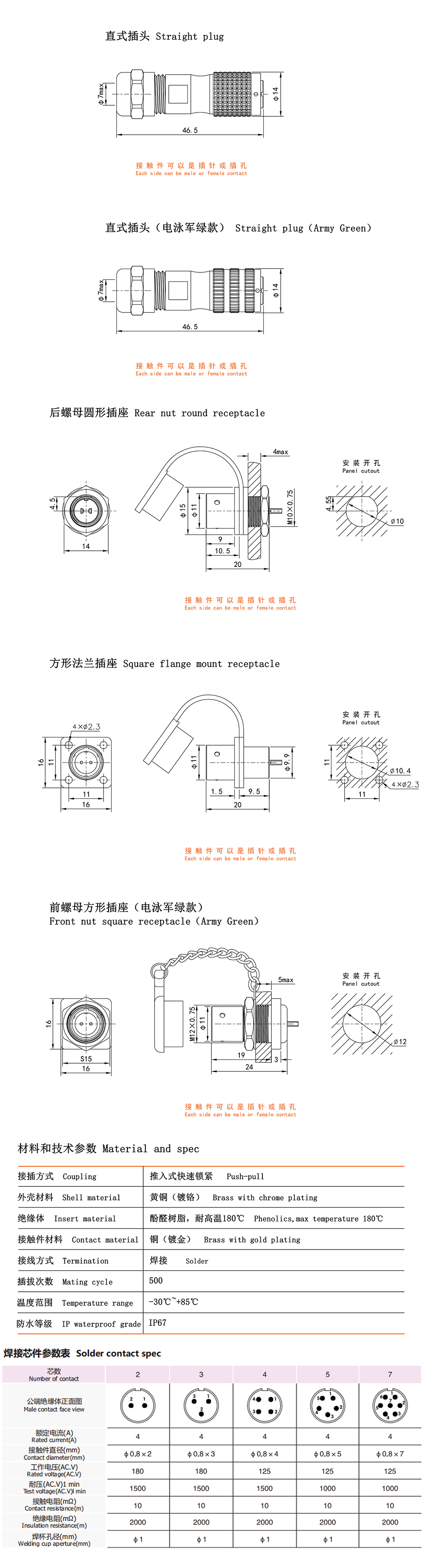

Type | Push-pull |
Shell material | Brass with chrome plated |
Insert material | Phenolics , max temperature 180℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 12mm |
Number of crimp contact | 2~3pin、 4~7pin（except6） |
Allowable Current (A） | 4 |
Contact diameter(mm) | Φ0.8 |
Allowable voltage(AC.V) | 180、 125 |
Test voltage(AC.V)/min | 1500、 1000 |
Contact resistance(m) | 10 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ1 |
【Applications】 The SF10 Series is perfect for extra-low voltage or data applications like LED screens, security camera systems, medical device instrumentation, testing or measuring devices, and other data and low-voltage applications.
