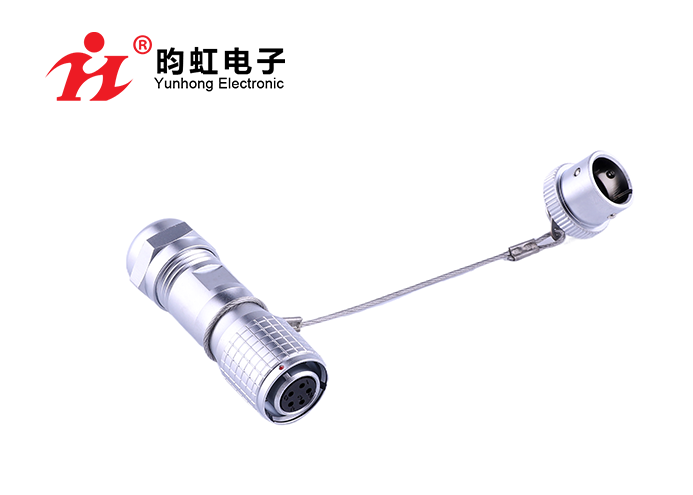

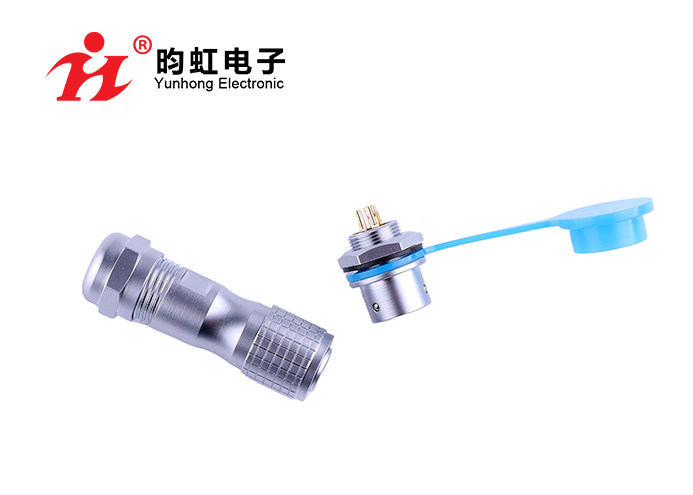

【Features】This is a waterproof, Snap lock or screw type panel-mount receptacle . It’s expertly crafted from durable brass chrome plating, designed specifically for applications demanding rapid connections and robust construction. 【Applications】Ideal for cable extension and relaying between devices.They are widely used in aviation, aerospace, ships and other military fields.

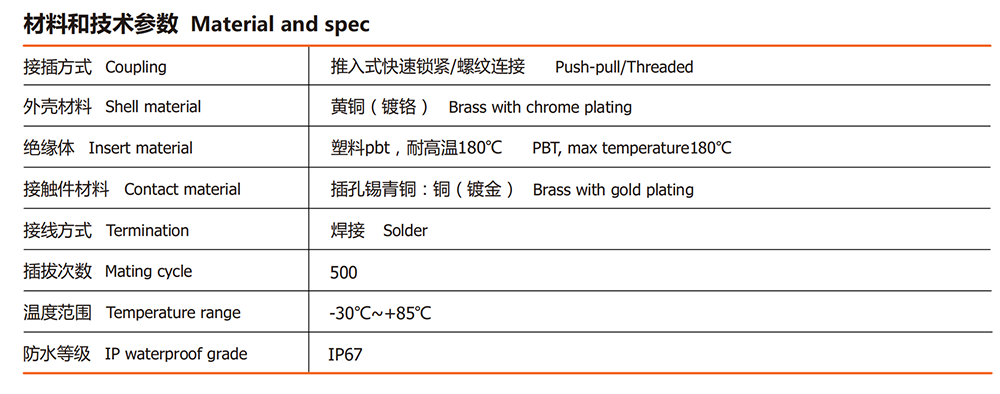

Type | Push-pull/Threaded |
Shell material | Brass with chrome plated |
Insert material | PBT , max temperature 180℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |

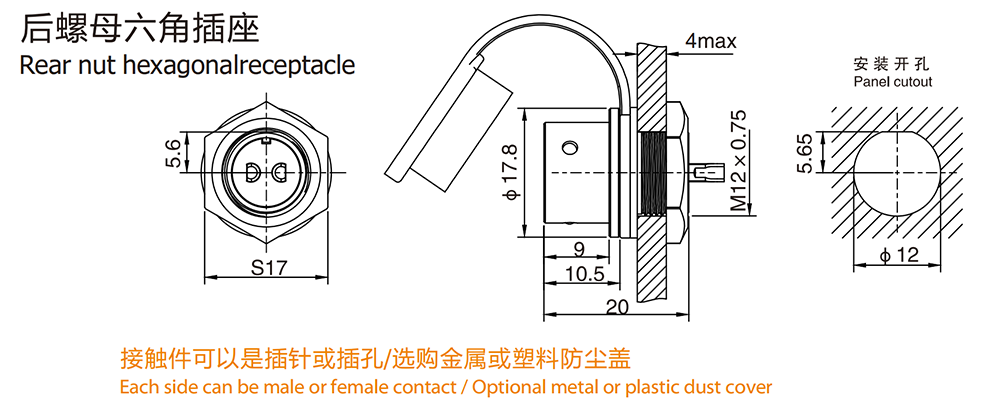

Panel hole cutout diameter | 12mm |

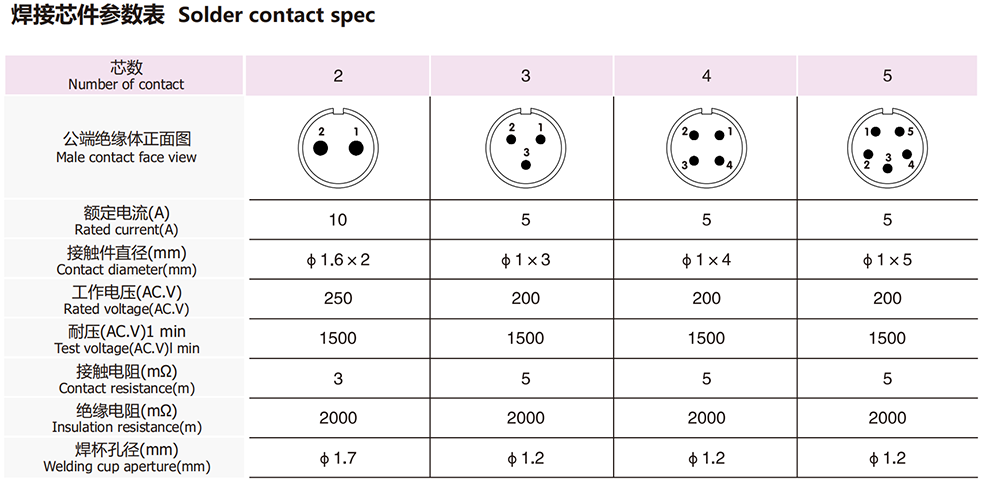

Number of crimp contact | 2、 3~5pin |
Allowable Current (A） | 10、 5 |
Contact diameter(mm) | Φ1.6、 Φ1 |
Allowable voltage(AC.V) | 250、 200 |
Test voltage(AC.V)/min | 1500 |
Contact resistance(m) | 3、 5 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ1.7、 1.2 |
