【Features】This is a waterproof, threaded type panel-mount receptacle . It’s expertly crafted from durable brass nickel plating(Socket stainless steel), designed specifically for robust construction. 【Applications】Ideal for cable extension and relaying between devices.They are widely used in aviation, aerospace, ships and other military fields.

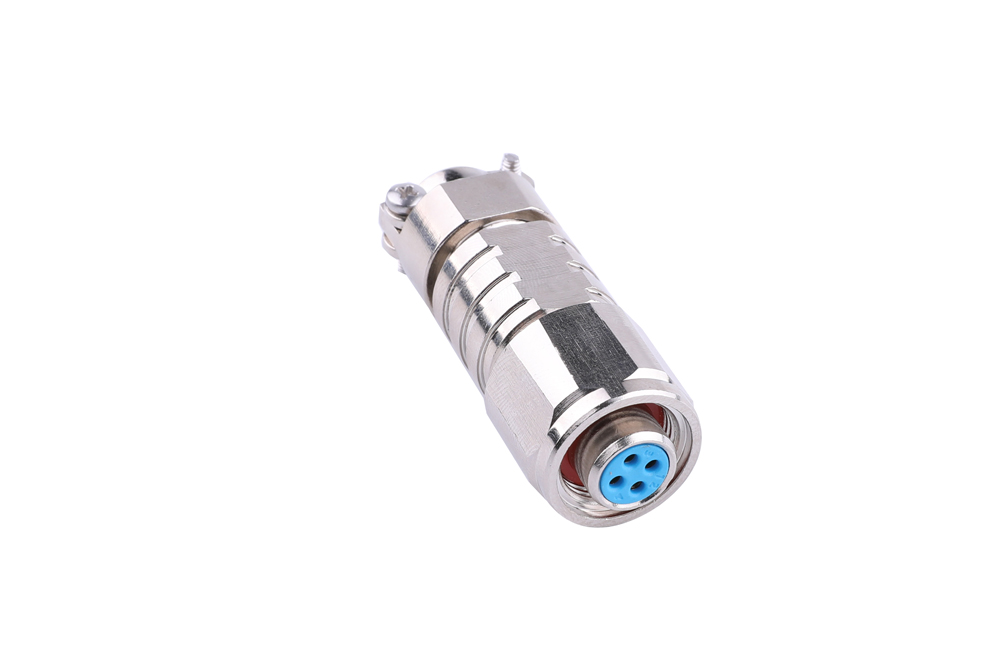

HKCT-80 Straight thread plug

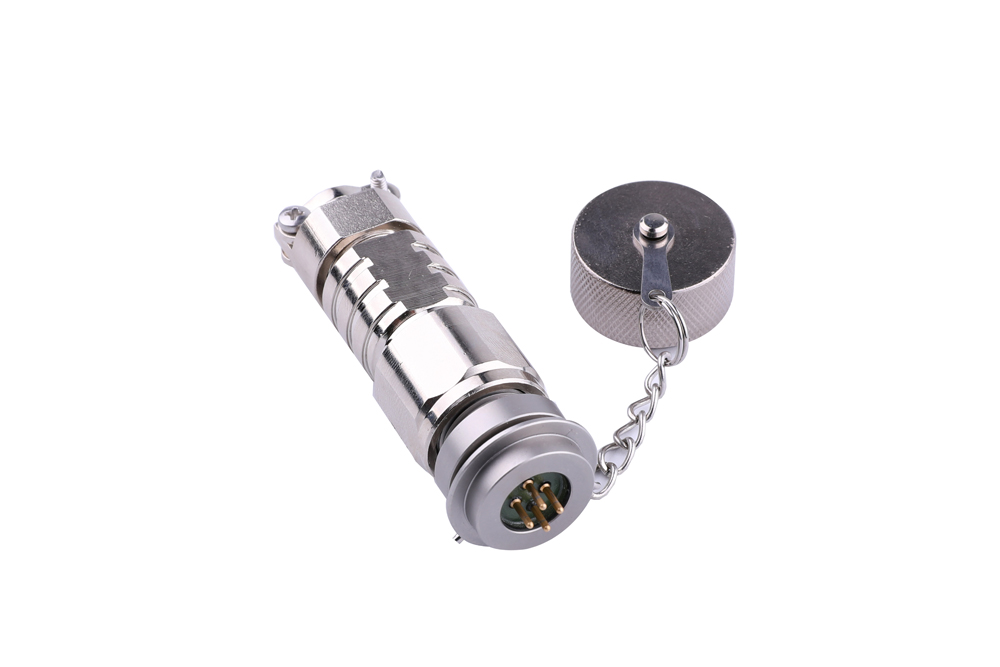

HKCT-80 Straight thread plug with round receptacle
Type | Threaded |
Shell material | Plug brass with nickel plated |
Insert material | PBT , max temperature 180℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 21.5mm |
Number of crimp contact | 4pin |
Allowable Current (A） | 10 |
Contact diameter(mm) | Φ1.5 |
Allowable voltage(AC.V) | 250 |
Test voltage(AC.V)/min | 1500 |
Contact resistance(m) | 3 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ0.1 |
