【Features】Offers reliable, heavy-duty metal circular connectors built with a chrome and nickel brass plated alloy shell. Designed for machinery, lab equipment, control panels, automation units, and more. 【Applications】The connector is suit for the electrical connection between instruments and meters electronic equipment, wire and cables shears directly or through the wall panel connection.this product is widely used in aviation, automobile computer, communication oil exploration, navigation, alarm,traffic,lighting,audio and servo motor and other industries.

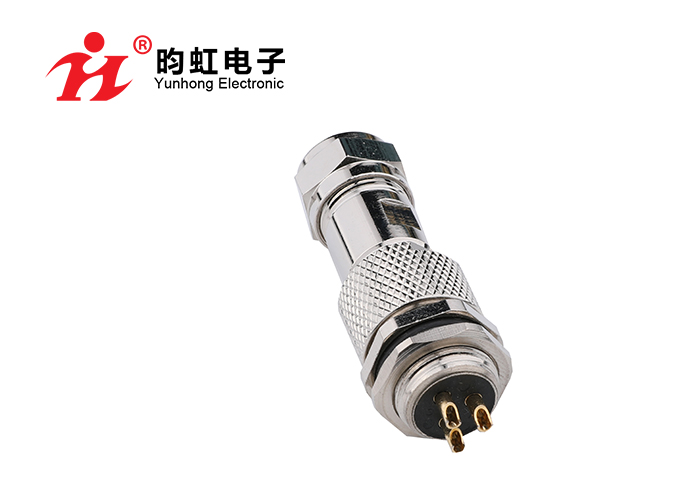

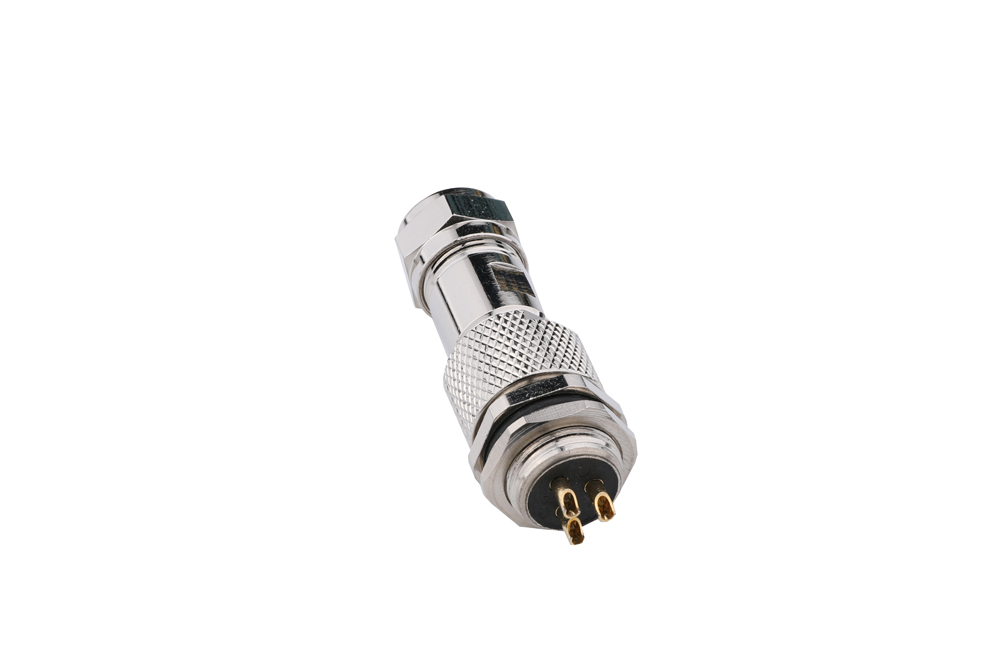

Straight plug & Rear nut hexagonal receptacle

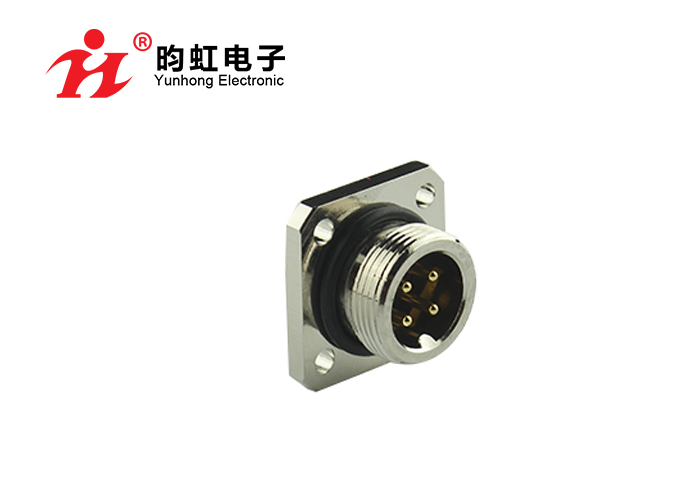

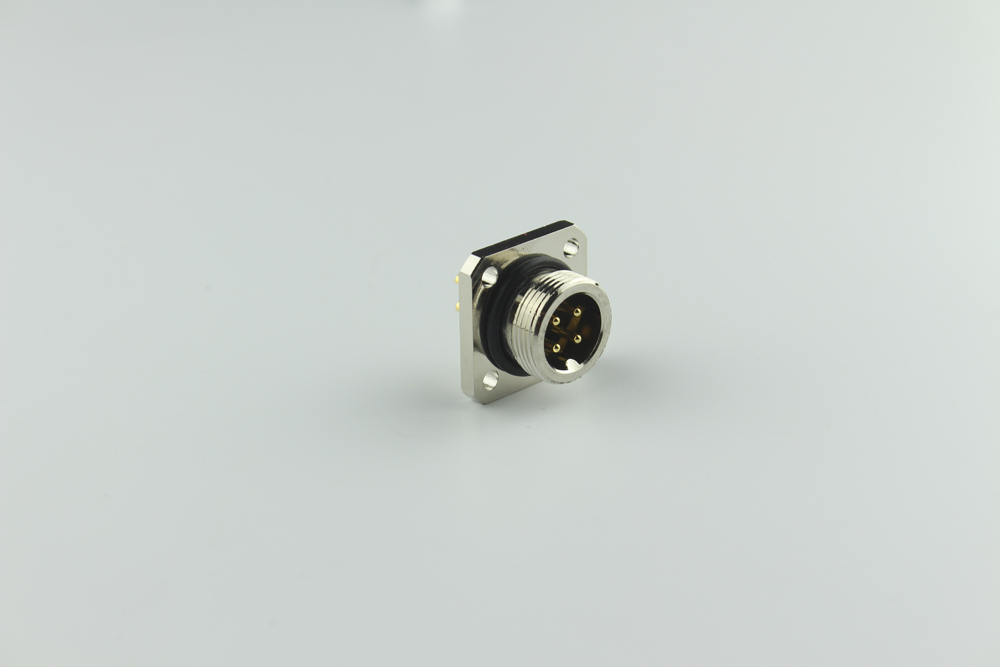

Square flange receptacle

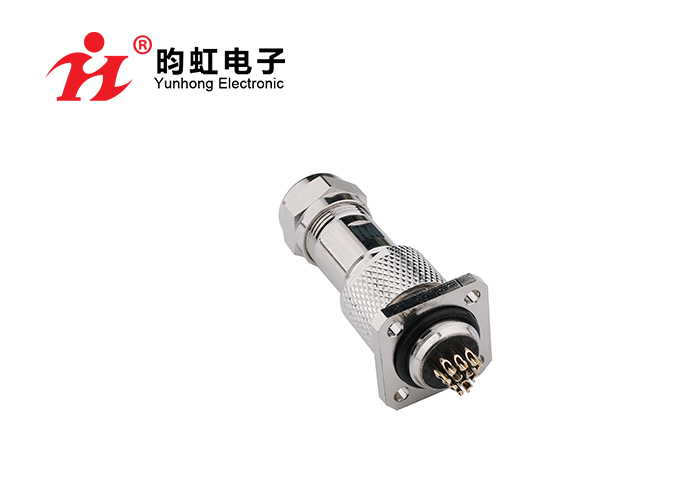

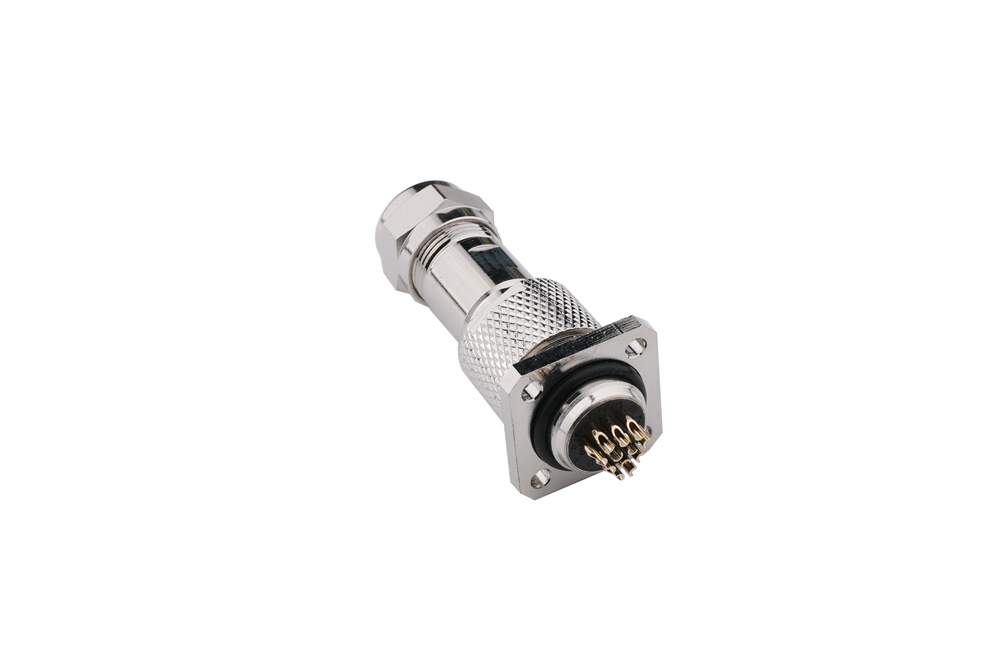

Straight plug & Square flange receptacle

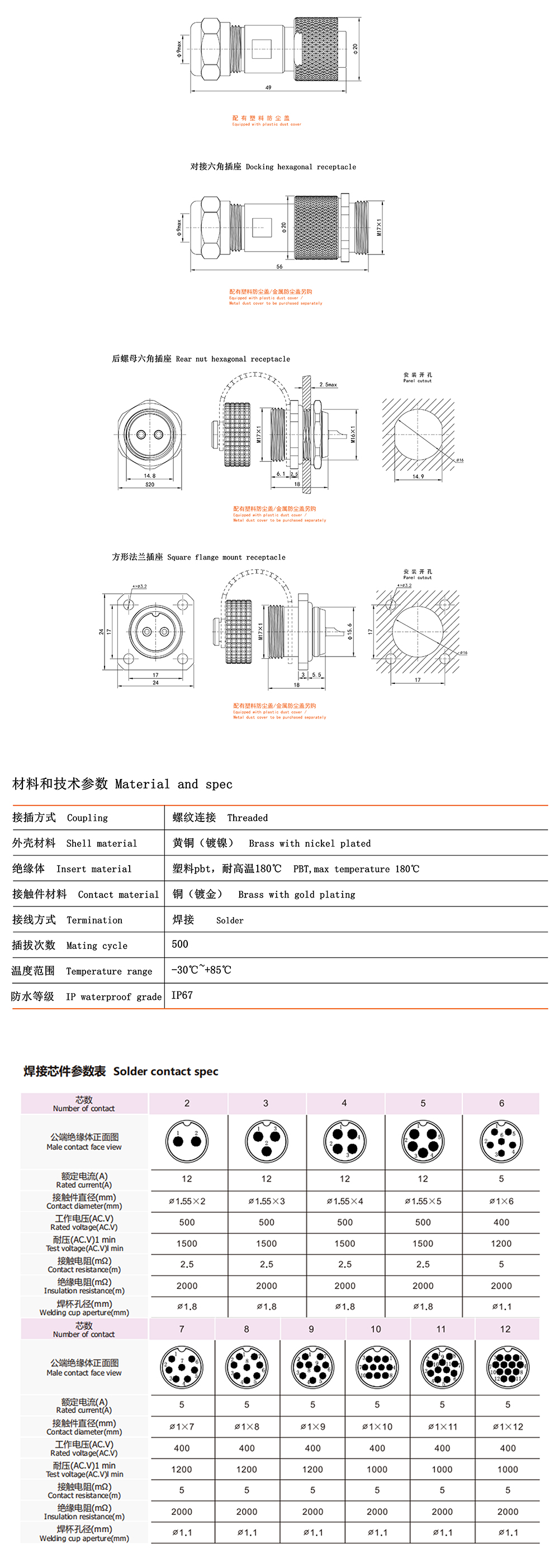

Type | Threaded |
Shell material | Brass nickel or chromium plated |
Insert material | PBT , max temperature 180℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP65(IEC60529) |
Panel hole cutout diameter | 16mm |
Number of crimp contact | 2~5pin、6~10pin、10-12pin |
Allowable Current (A） | 12、 5 、 5 |
Contact diameter(mm) | Φ1.5、 Φ1、 Φ1 |
Allowable voltage(AC.V) | 500、 400 、 400 |
Test voltage(AC.V)/min | 1500、 1200、 1000 |
Contact resistance(m) | 2.5、 5、 5 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ1.8、 Φ1.1、 Φ1.1 |
