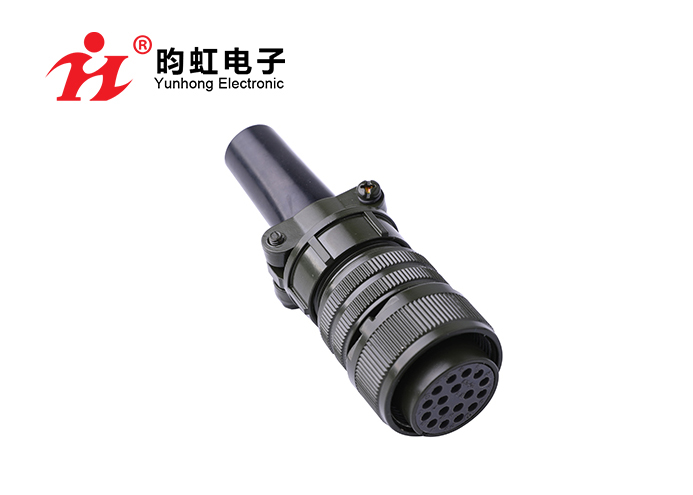

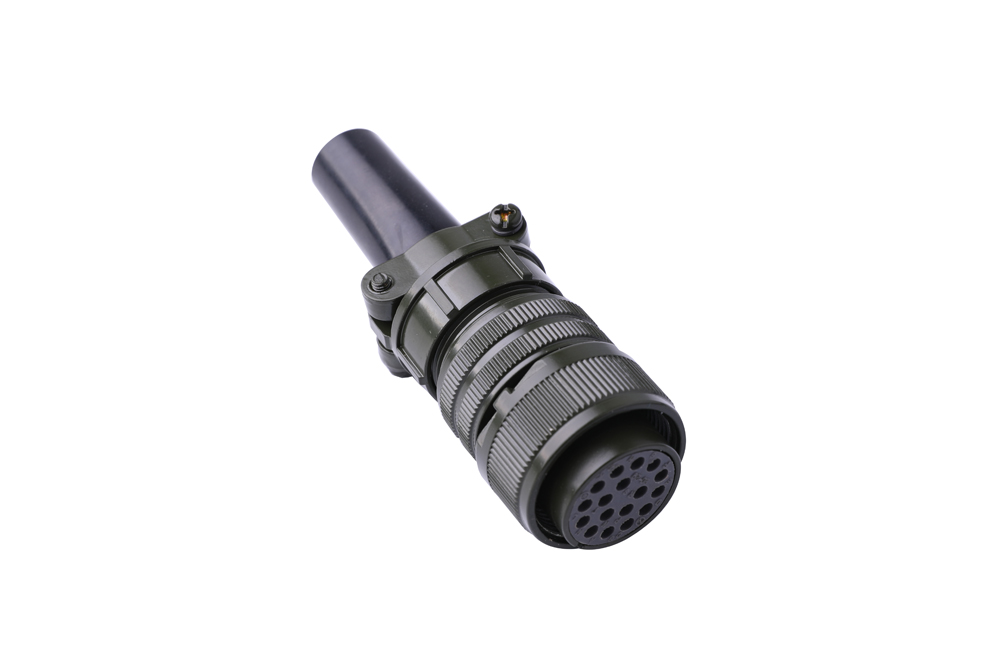

【Features】This is a waterproof, screw type panel-mount receptacle . A special chemical surface treatment is used. It is mounted on a panel and connected to a straight plug. Demonstrates waterproof function when mated. 【Applications】Ideal for cable extension and relaying between devices.

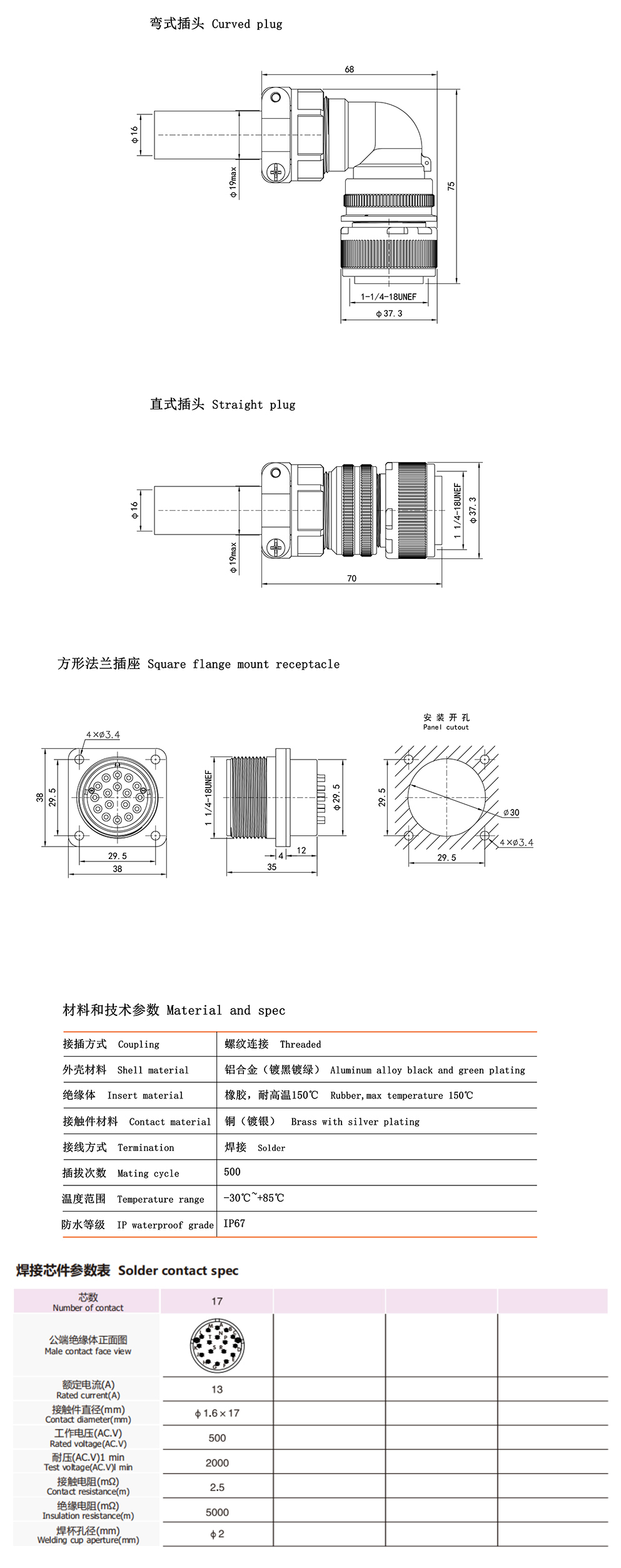

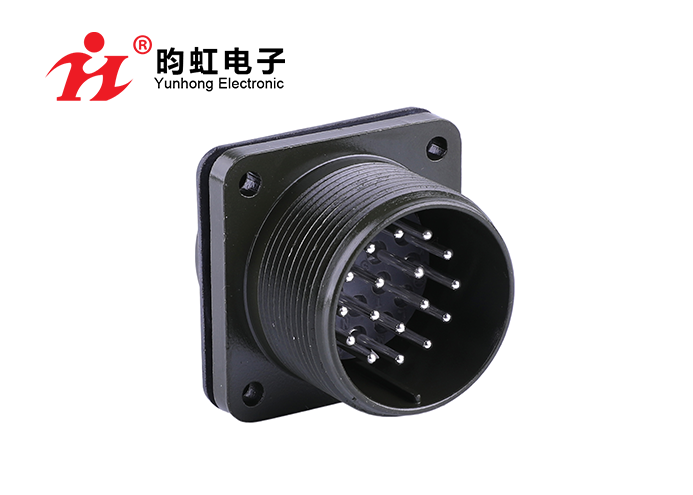

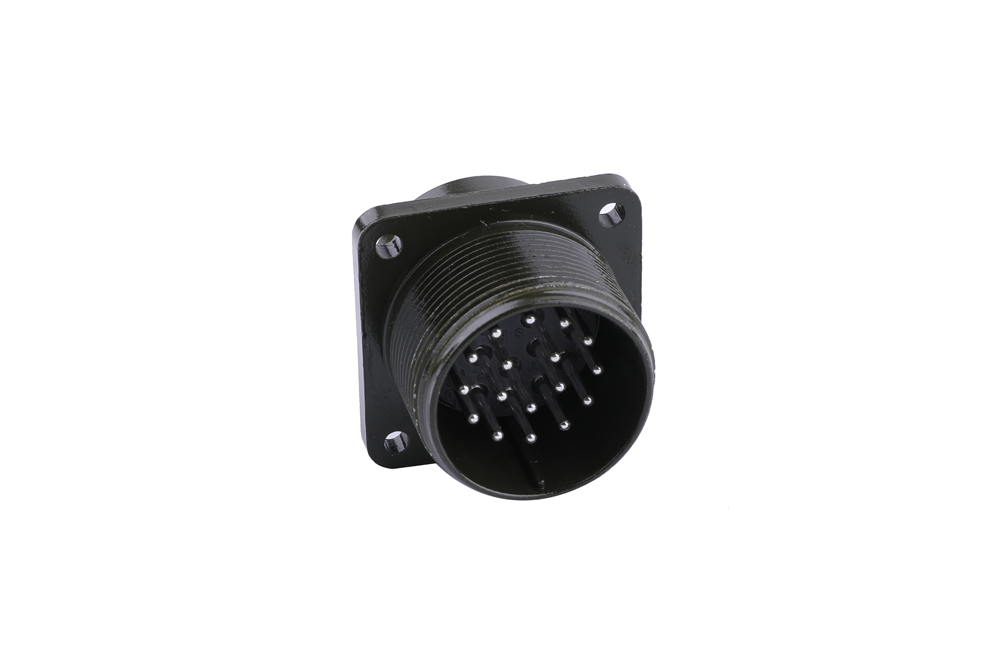

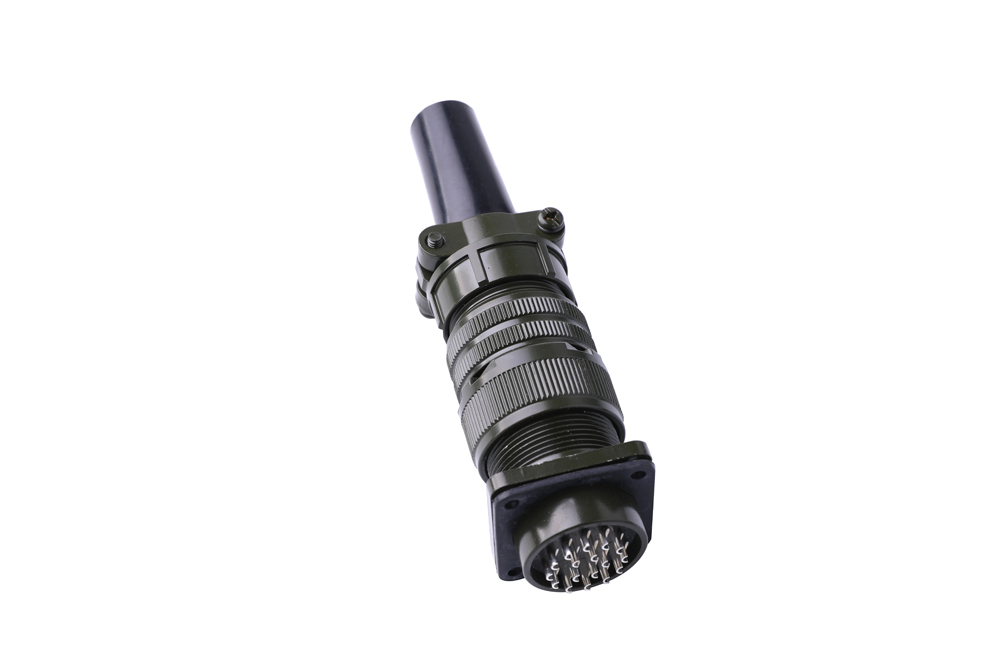

Square flange mounyt receptacle
【Features】
Connects to the relay adapter and panel mounting receptacle.
● It has a waterproof structure class IP67, which makes it suitable for use in places exposed to water or dust.
● Features high waterproof performance while at the same time realizing a surprisingly low price.
● Integrated with a cable clamp, it allows space to be used more economically.
● 5015 Model.
Type | Threaded |
Shell material | Aluminum alloy black and green plating |
Insert material | Rubber,max temperature 150℃ |
Contact material | Brass with silver plating |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 30mm |
Number of crimp contact | 17pin |
Allowable Current (A） | 13 |
Contact diameter(mm) | Φ1.6*17 |
Allowable voltage(AC.V) | 500 |
Test voltage(AC.V)/min | 2000 |
Contact resistance(m) | 2.5 |
Insulation resistance(m) | 5000 |
Welding cup aperture(mm) | Φ2 |
Caution When fitted with the non-waterproof model, the IP67 waterproofing performance will not be maintained.
Does not support key position changes.
