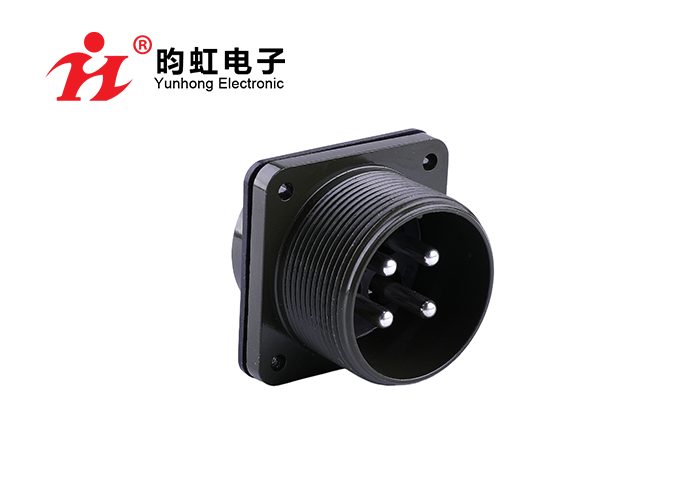

【Features】This is a waterproof, screw type panel-mount receptacle .High voltage resistance; easy to weld; high cost performance; lightweight; multiple specifications. It is mounted on a panel and connected to a straight plug. The 5015 series connectors comply with the U.S. military standard Mil-C-5015 (GJB600). The products feature a high-strength aluminum alloy housing, threaded connections, fool-proof key, and multiple key way configurations for easy identification. They are equipped with high-temperature and high-voltage-resistant synthetic rubber insulators and are available in both soldered and crimped versions. 【Applications】Ideal for cable extension and relaying between devices.With a simple and practical design and excellent cost-performance ratio, these connectors are widely used in industries such as industrial machinery, military equipment, defense systems, marine equipment, automotive, instrumentation, and servo motors. They can fully replace comparable products from Europe and the U.S.
【Features】

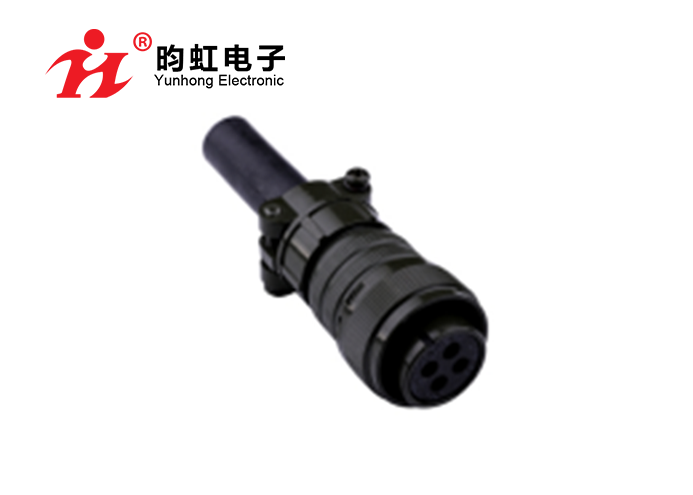

Connects to the relay adapter and panel mounting receptacle.
● It has a waterproof structure class IP67, which makes it suitable for use in places exposed to water or dust.
● Features high waterproof performance while at the same time realizing a surprisingly low price.
● Integrated with a cable clamp, it allows space to be used more economically.
● 5015 Model.

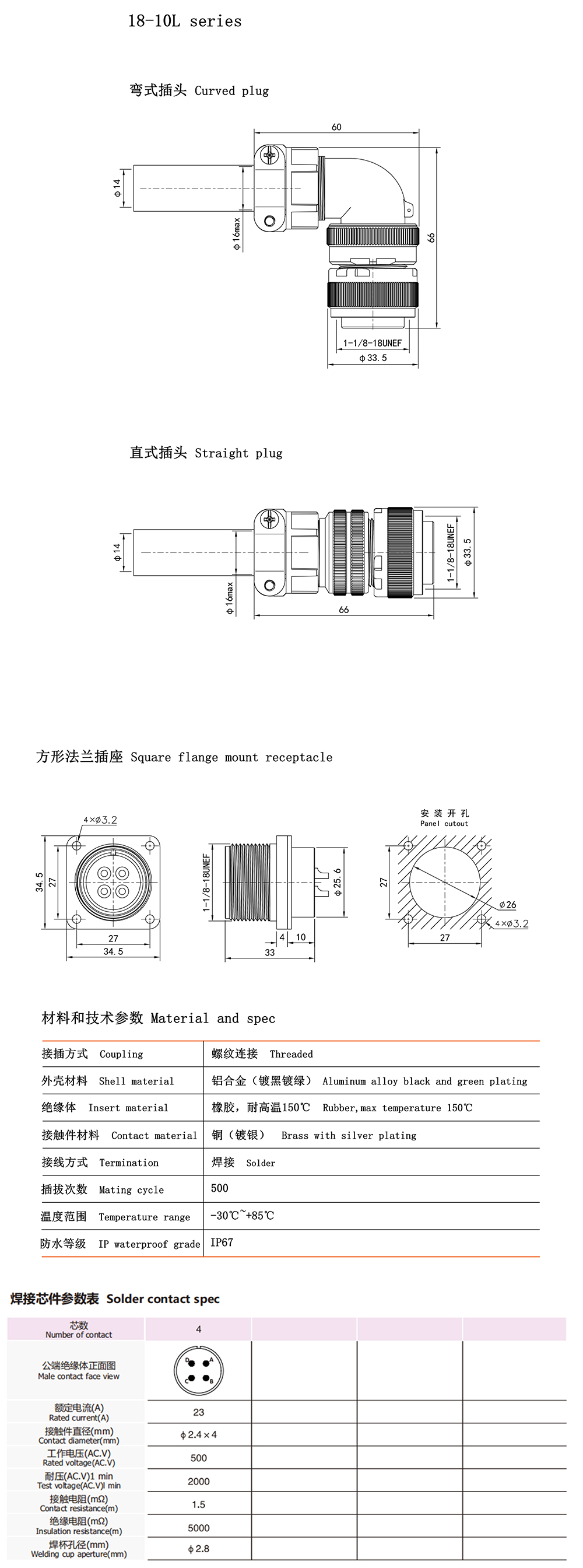

Type | Threaded |
Applicable pin/contact | Female (socket) |
Shell material | Aluminum alloy black and green plating |
Insert material | Rubber,max temperature 150℃ |
Contact material | Brass with silver plating |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP67(IEC60529) |
Panel hole cutout diameter | 26mm |
Number of crimp contact | 4pin |
Allowable Current (A） | 23 |
Contact diameter(mm) | Φ2.4*4 |
Allowable voltage(AC.V) | 500 |
Test voltage(AC.V)/min | 2000 |
Contact resistance(m) | 1.5 |
Insulation resistance(m) | 5000 |
Welding cup aperture(mm) | Φ2.8 |
Caution When fitted with the non-waterproof model, the IP67 waterproofing performance will not be maintained.
Does not support key position changes.
