【Features】Adopts bayonet type fast connection, has the advantages of fast connection, reliable contact, small size, high density, good environmental resistance and so on. It also has good anti-dampness, anti-mold, anti-rain and anti-dust performance. 【Applications】They are widely used in aviation, aerospace, ships and other military fields.

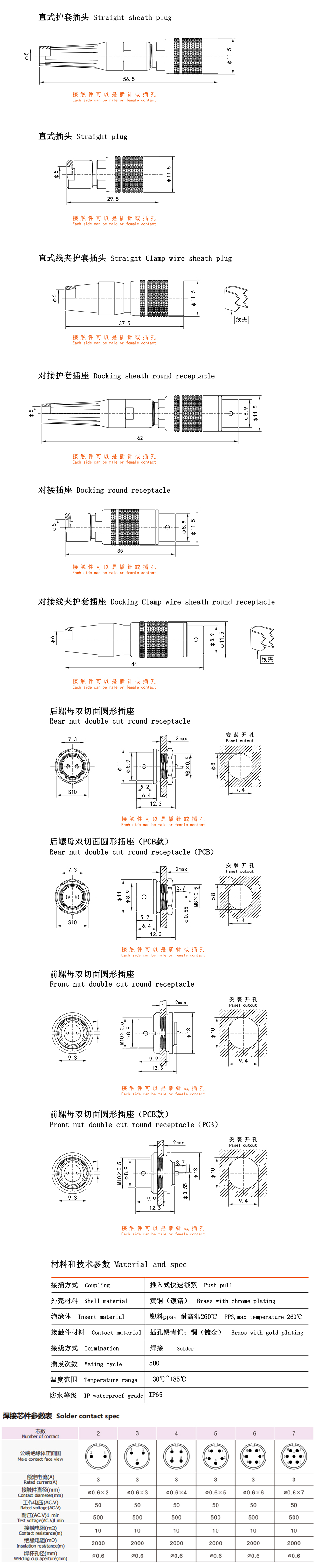

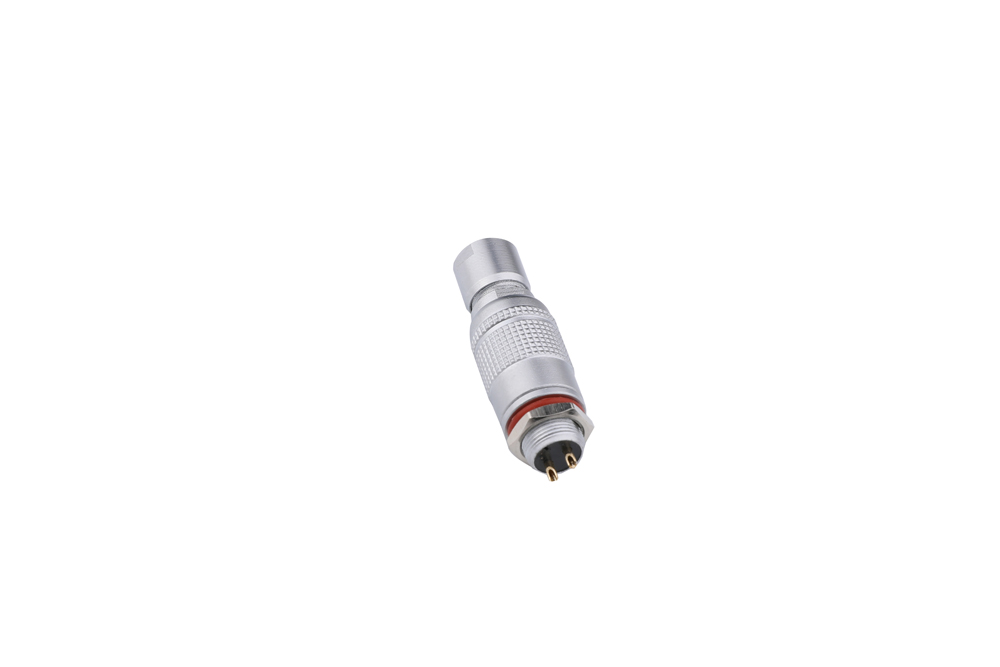

YC8-Straight plug with rear nut double cut round receptacle
Type | Snap lock |
Shell material | Brass with chrome plated |
Insert material | PPS , max temperature 260℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -30℃~+85℃ |
Protective Structure | IP65(IEC60529) |
Panel hole cutout diameter | 10mm |
Number of crimp contact | 2~7pin |
Allowable Current (A） | 3 |
Contact diameter(mm) | Φ0.6 |
Allowable voltage(AC.V) | 50 |
Test voltage(AC.V)/min | 500 |
Contact resistance(m) | 10 |
Insulation resistance(m) | 2000 |
Welding cup aperture(mm) | Φ0.6 |
