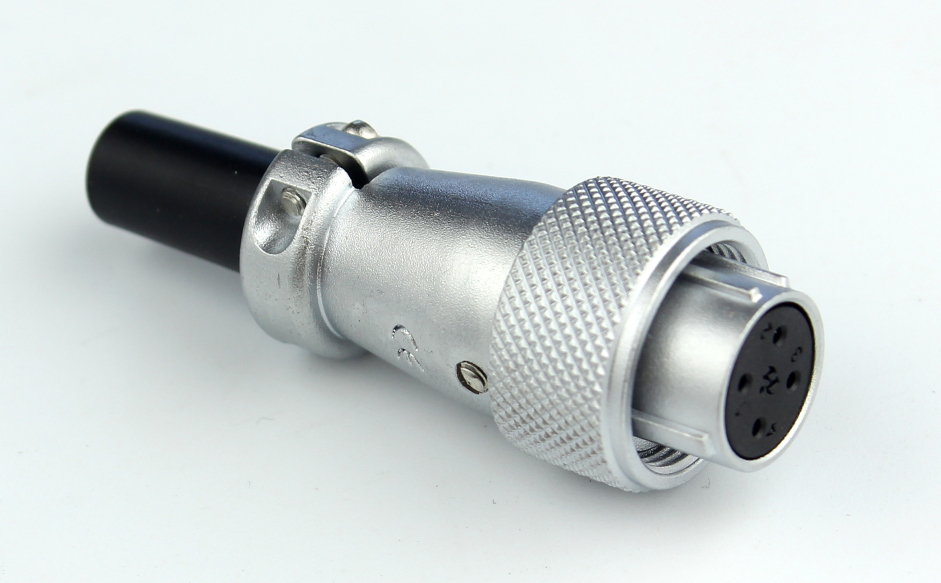

【Features】Offers reliable, heavy-duty metal circular connectors built with a chrome-plated zinc alloy shell. Designed for indoor industrial use, they support both power and signal with sizes 16mm, up to 10 pins. 【Applications】Perfect for machinery, lab equipment, control panels, automation units, and more.

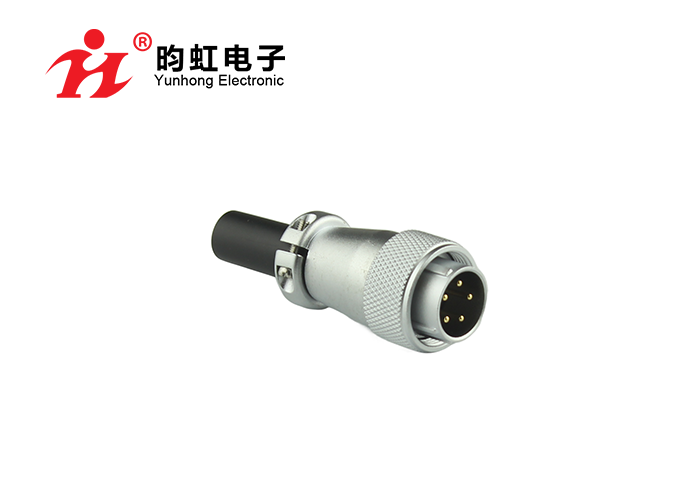

Available in both male and female

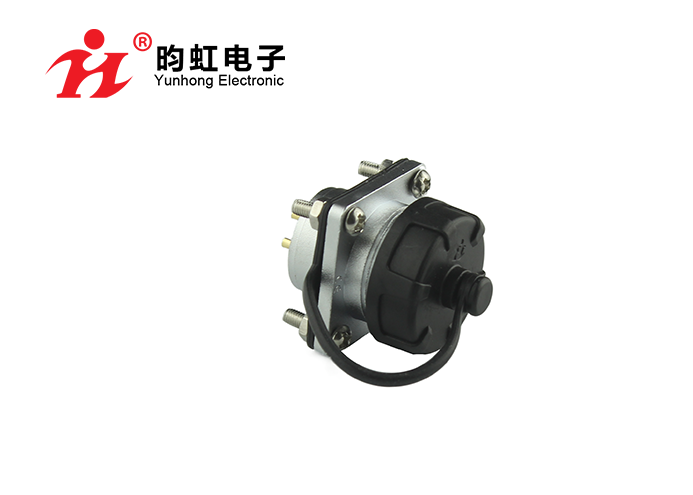

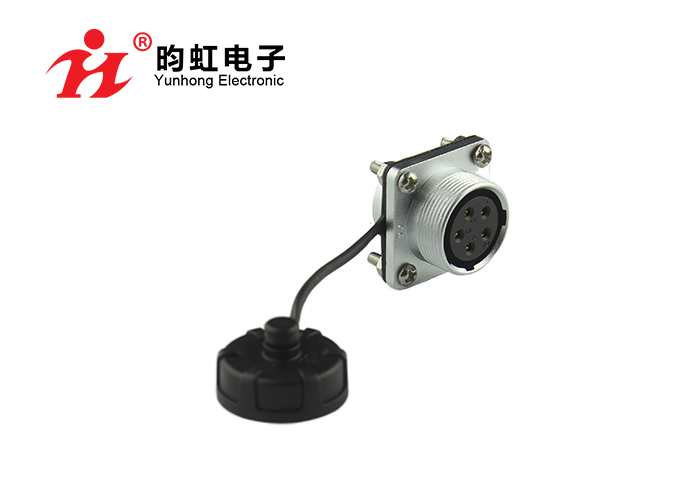

Have options for plug, inline cable connector, panel socket.

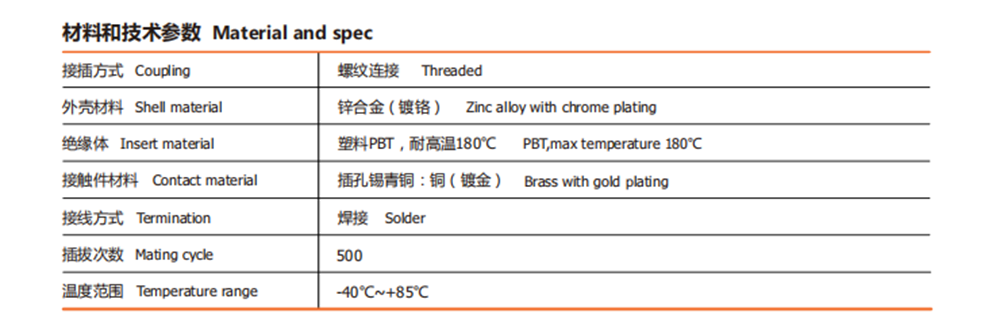

Type | Threaded |
Shell material | Zinc alloy with chrome plating |
Insert material | PBT , max temperature 180℃ |
Contact material | Brass plated with gold |
Wire connection method | Solder |
Mating cycle | 500 |
temperature range | -40℃~+85℃ |
Applications:
Perfect for machinery, lab equipment, control panels, automation units, and more;
Case Study-Industrial Testing Equipment
Explore Yunhong’s H series (H16/H20/H24) designed for industrial testing and measurement machines. high pin-count, anti-vibration, and secure locking.
Welcome to contact us for purchase.
